Mark-10 F755 / F755S / F1505 / F1505S Test frame with Test frame with IntelliMESUR – Motorized Force, Compression & Tensile Measurement Equipment
Set up tests, record data, and analyze data via IntelliMESUR® software. From basic tests to multi-step sequencing, IntelliMESUR® is available as an integrated tablet control panel or standalone license for any Windows device.
📎 IntelliMESUR® / EasyMESUR® Comparison Chart
📎 Series ESM / EasyMESUR® Comparison Chart
Mark-10 F755 / F755S / F1505 / F1505S
Test frame with IntelliMESUR – Motorized Force, Compression & Tensile Measurement Equipment
Tension / Compression Test Frames

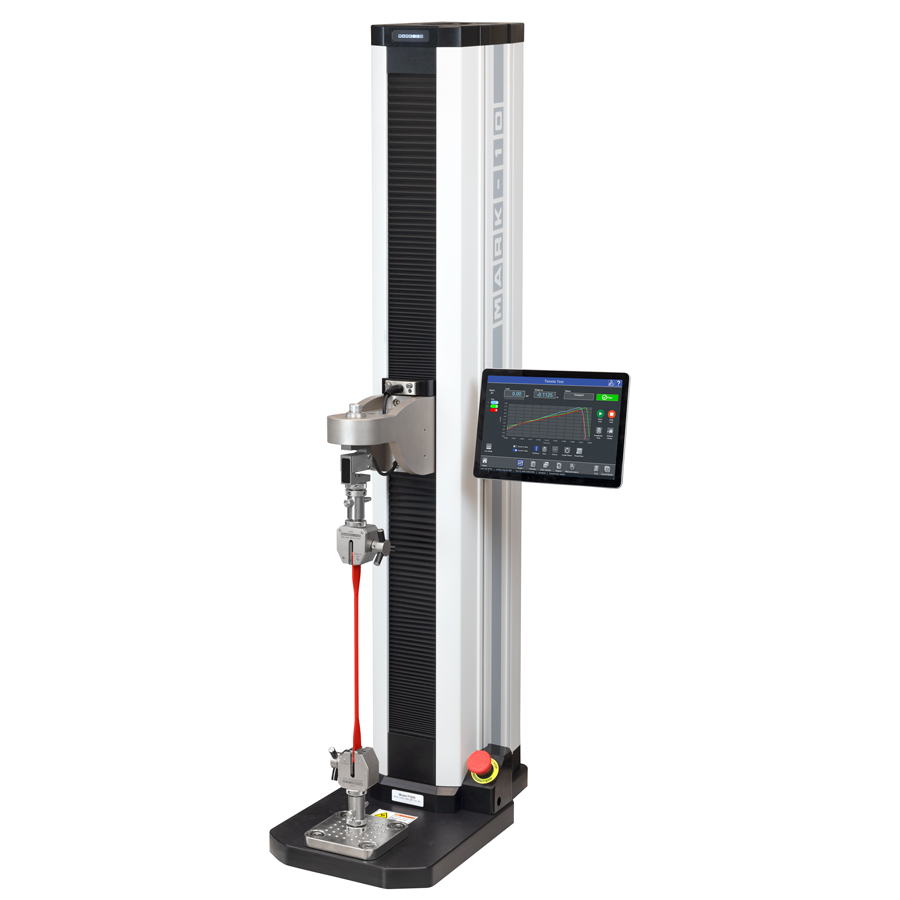

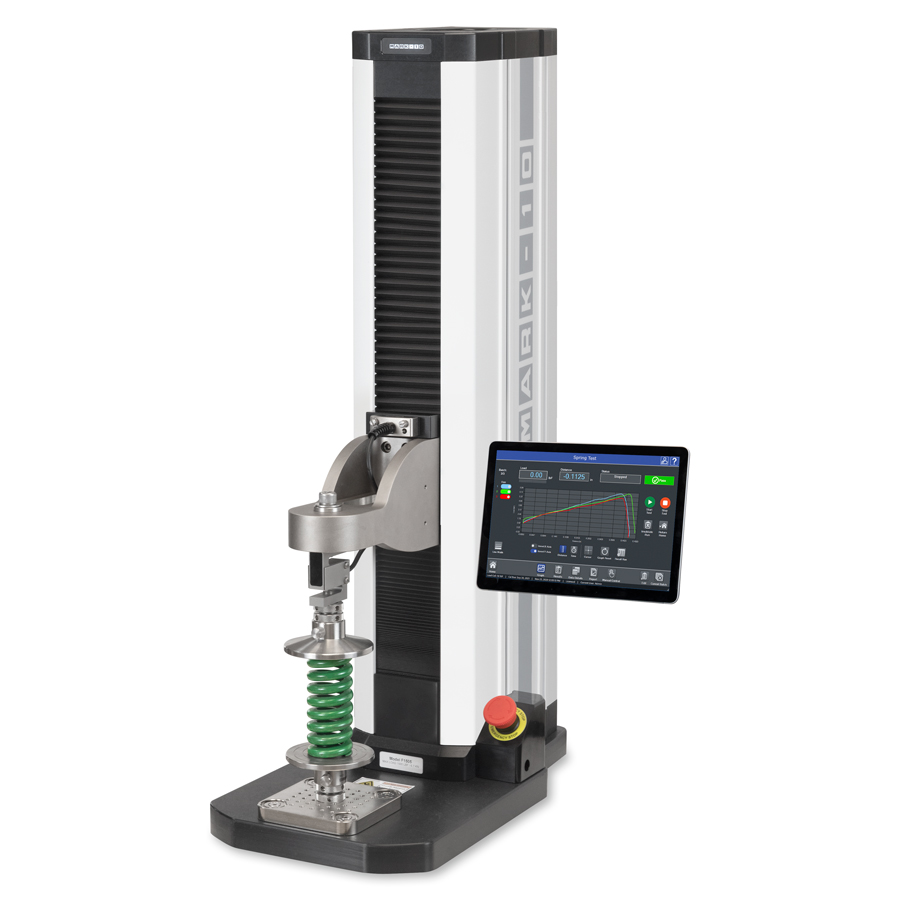

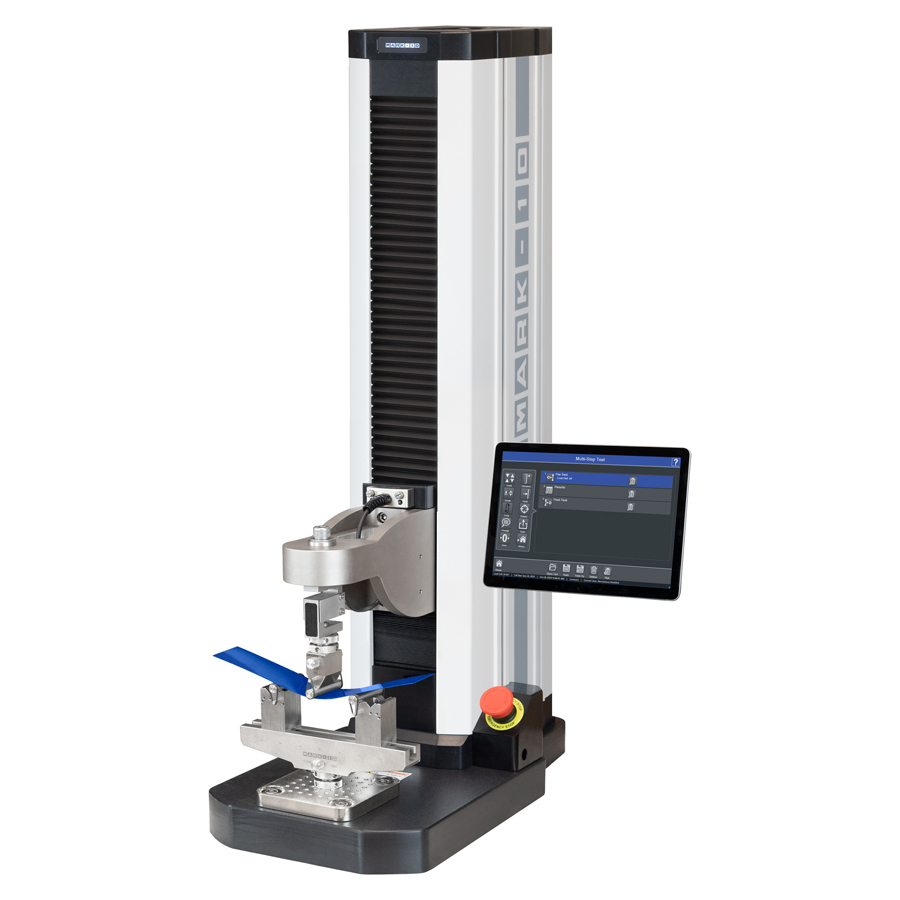

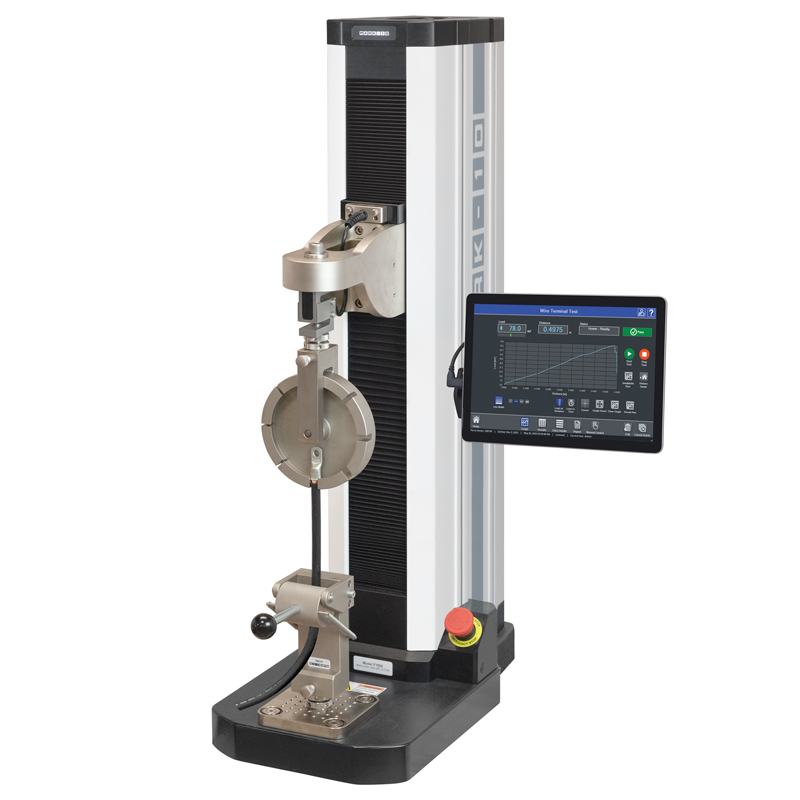

This family of force testers is designed for tension and compression force testing applications, with force capacities up to 1,500 lbF (6.7 kN). Select from a broad range of force sensor capacities and an expansive array of grips and fixtures. Set up tests, record data, and analyze data via IntelliMESUR® software. From basic tests to multi-step sequencing, IntelliMESUR® is fully integrated with Series F systems. Select from a pre-configured tablet control panel or standalone software for your own Windows device. Characterize and analyze material behavior with the optional Materials Testing Calculations Module , featuring a suite of common calculations such as tensile strength, Young’s modulus, yield point, and more. Coefficient of Friction (COF) Measurement is also available through an optional module.

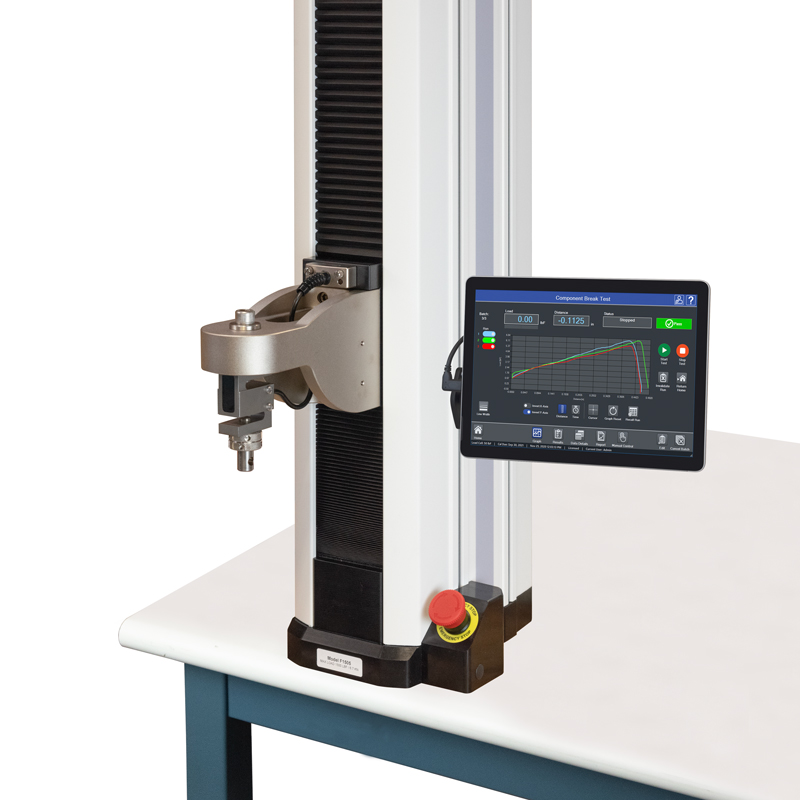

IntelliMESUR® is an advanced, integrated force measurement system. Select a pre-loaded 10.1” tablet with mounting bracket or use your own Windows device. With IntelliMESUR®, you can create and run a wide range of basic and multi-step tests, including:
- Limit testing to a load, break, or distance

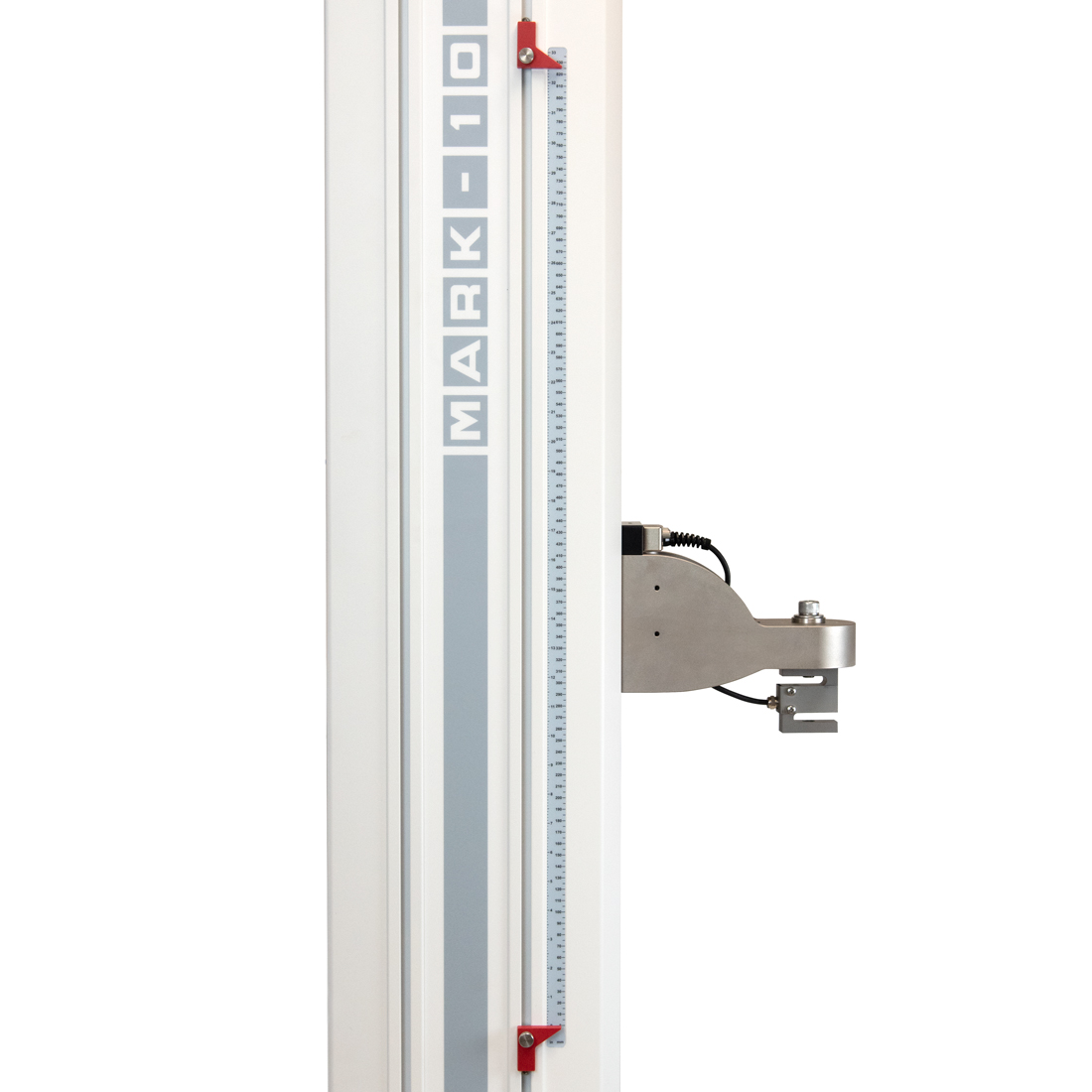

- Height measurement
- Load holding
- Cycle testing
- Multi-step testing, utilizing any combination of the above functions
- Materials testing, including stress, strain, Young’s modulus, yield point, and other common calculations via the optional Materials Testing Calculations module.
Run individual runs or batches, and view data in graphical format or results tables. Save or export data as needed, or generate a report.
For best performance with the Load Holding function, use a force sensor with a capacity as close as possible to the target load.
