Mark-10 Model TSF / TSFH Manual Test Stands
Functions at a Glance
- Model — Description
- TSF — Test stand, 1,000 lbF, vertical

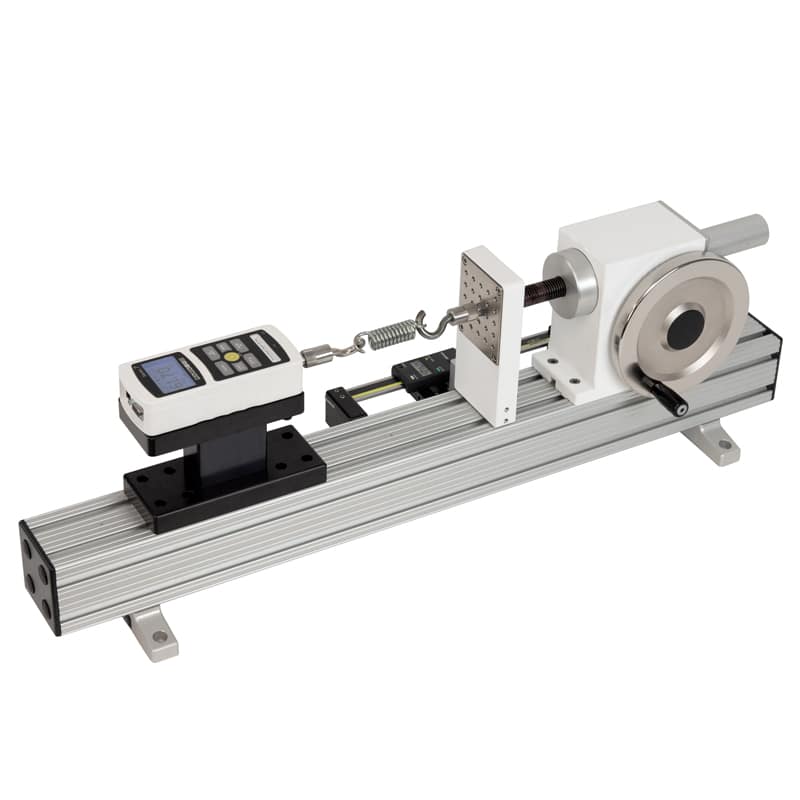

- TSFH — Test stand, 1,000 lbF, horizontal

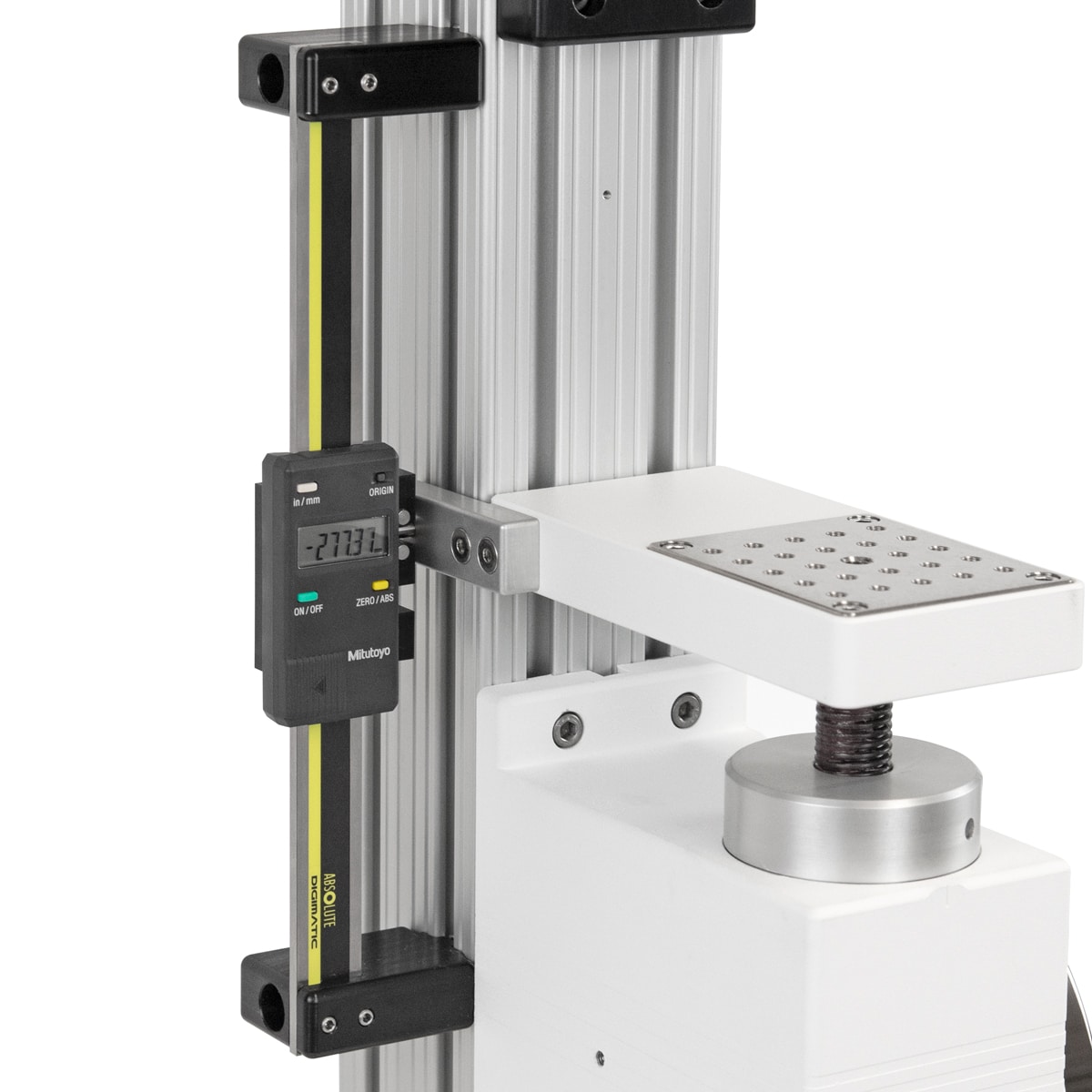

- TSF001 — Digital travel display for TSF/TSFH
- TSF002 — Horiz. / wall mounting kit for TSF Series and TST Series stands
- SP-2735-12 — Column extension, 12 in / 305 mm
- SP-2735-24 — Column extension, 24 in / 610 mm
- SP-2735-42 — Column extension, 42 in / 1065 mm
Description
Mark-10 Model TSF / TSFH
Key Highlights

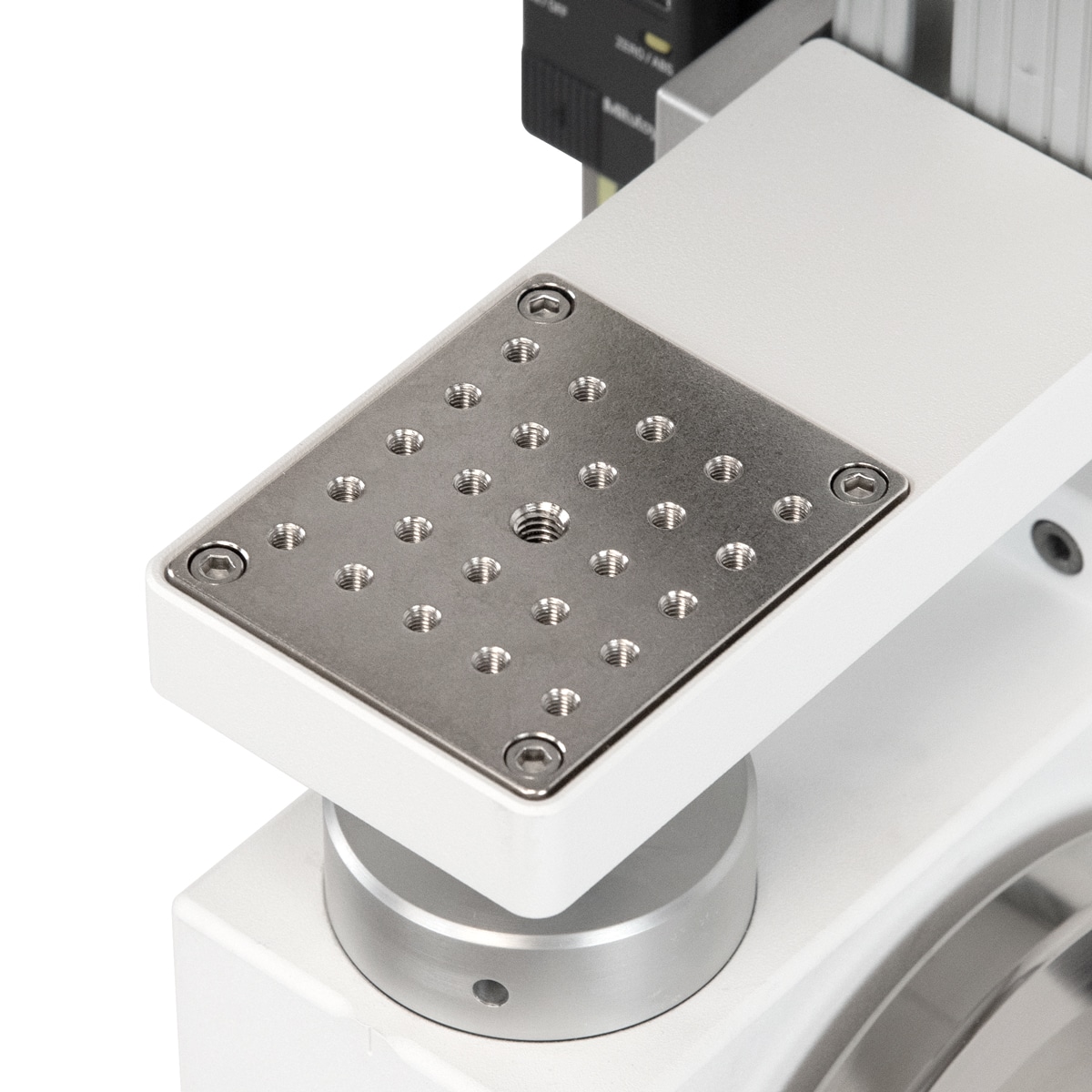

The TSF Force Measurement Test Stand is ideal for spring testing, destructive testing, product integrity testing, and other applications requiring up to 1,000 lbF (5 kN) of push or pull force. The stand features a large side mounted hand wheel requiring minimal user effort and a rigid 3” x 3” column. A removable steel loading
surface with threaded holes for fixture and grip mounting adds flexibility for many testing applications, and a solid metal base contains a storage pocket and holes for bench mounting.
| Model | Description |
| TSF | Test stand, 1,000 lbF, vertical |
| TSFH | Test stand, 1,000 lbF, horizontal |
| TSF001 | Digital travel display for TSF/TSFH |
| TSF002 | Horiz. / wall mounting kit for TSF Series and TST Series stands |
| SP-2735-12 | Column extension, 12 in / 305 mm |
| SP-2735-24 | Column extension, 24 in / 610 mm |
| SP-2735-42 | Column extension, 42 in / 1065 mm |
Why Choose Besmic Optic?
- Authorised Mark-10 distributor in Malaysia
- Full technical support and after-sales service
- Calibration and product demonstration available on request
- Fast delivery across Malaysia and Southeast Asia
- Over 20 years of precision instrument expertise
Request a Quote
Contact Besmic Optic for pricing, availability, and technical consultation.
George Town, Penang, Malaysia.
