Mark-10 Series TT05
Functions at a Glance
- Accuracy: — ±0.3% of full scale
- Sampling rate: — 7,000 Hz
- Power: — AC or rechargeable battery. Multi-step low battery indicator is
displayed, tester shuts off automatically when power is too low. - Battery life: — Backlight on:up to 7 hours of continuous useBacklight off:up to 24 hours of continuous use
- Measurement units: — ozFin, lbFin, kgFcm, Nm, Ncm
- Output: — USB / RS-232:Configurable up to 115,200 baud.Mitutoyo:Serial BCD suitable for all Mitutoyo
SPC-compatible devices.Analog:±1 VDC, ±0.25% of full scale at capacity.General purpose:Three open drain outputs, one
input.Set points:Three open drain lines, 40 VDC max., 100 mA DC max. - Safe overload: — 150% of full scale (display shows “OVER” at 110% and above)
- Weight: — 9 lb [4.1 kg]
Description

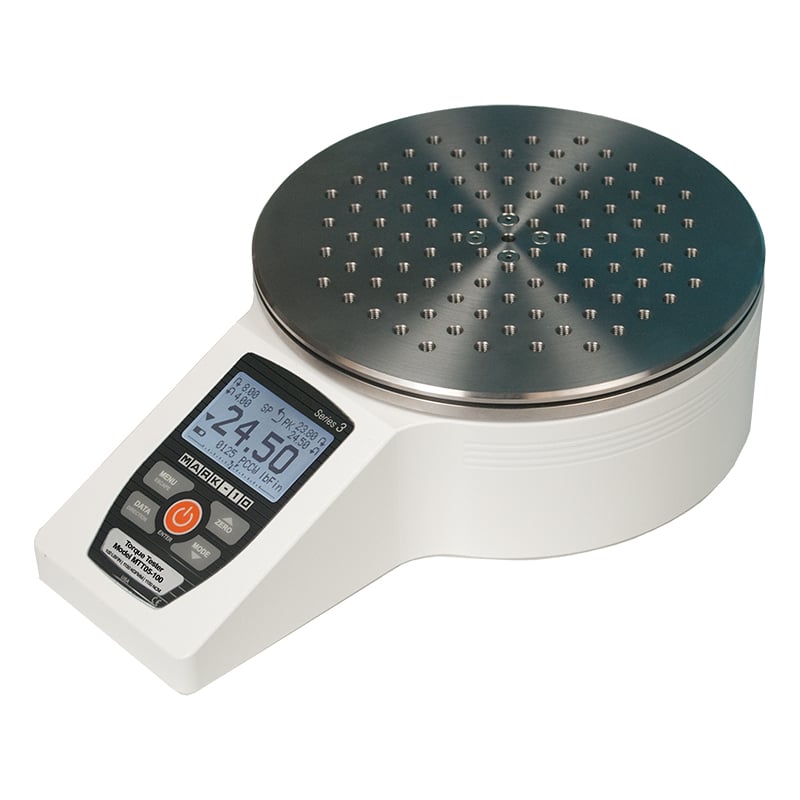

Mark-10 Series TT05
Key Highlights

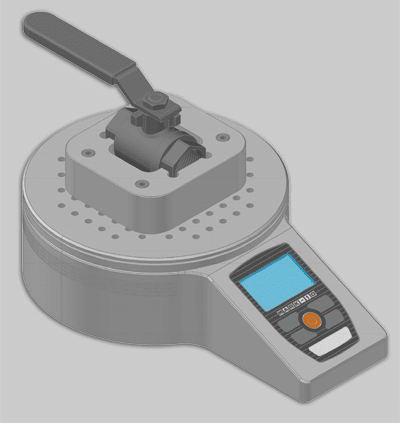

Series TT05 universal torque testers can be used for a range of applications up to 100 lbFin [11.5 Nm]. The stainless steel loading surface features a matrix of threaded holes, ideal for accommodating specialized fixtures and attachments. The testers’ rugged design and simple, intuitive operation allow for use in laboratory and production environments. Accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications. Password protection is provided to prevent unauthorized changes to settings and calibration.
| Specification | Details |
|---|---|
| Accuracy | ±0.3% of full scale |
| Sampling rate | 7,000 Hz |
| Power | AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low. |
| Battery life | Backlight on: up to 7 hours of continuous use. Backlight off: up to 24 hours of continuous use. |
| Measurement units | ozFin, lbFin, kgFcm, Nm, Ncm |

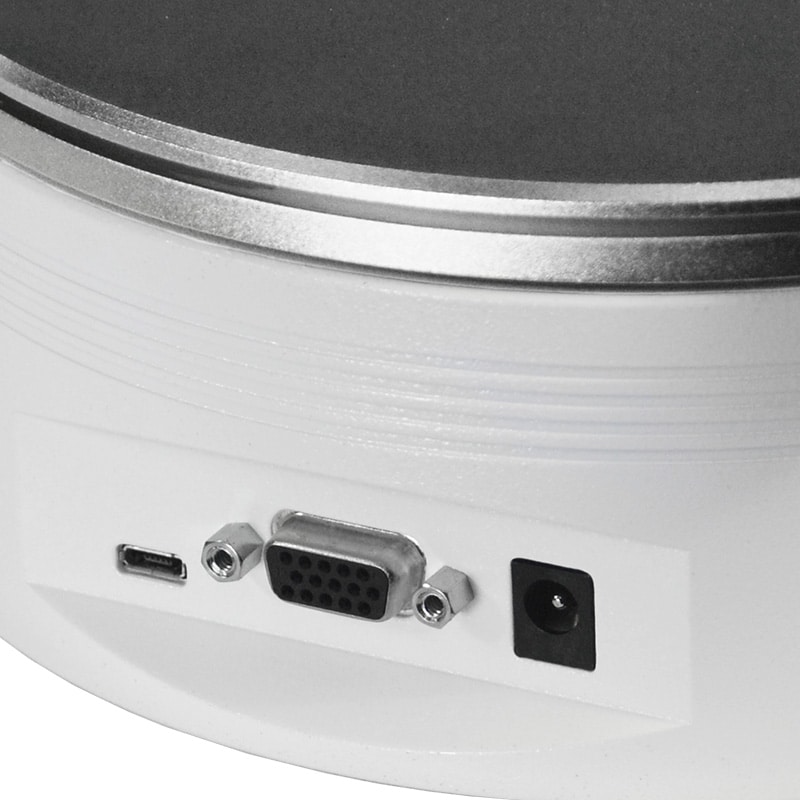

| Output | USB / RS-232: Configurable up to 115,200 baud. Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VDC, ±0.25% of full scale at capacity. General purpose: Three open drain outputs, one input. Set points: Three open drain lines, 40 VDC max., 100 mA DC max. |
| Safe overload | 150% of full scale (display shows “OVER” at 110% and above) |
| Weight | 9 lb [4.1 kg] |
| Shipping weight | 10 lb [4.5 kg] |
| Environmental requirements | 40°F – 100°F [5°C – 45°C], < 96% humidity (non-condensing) |
| Warranty | 3 years (see individual statement for further details) |
| Model no. | MTT05 (all models) |
| HS code | 9024100000 (MTT05 all models); 9024800000 (CERT, CT002, 15-1004, AC1111, AC1118, AC1030, AC1031, AC1032, AC1035) |
| ECCN | EAR99 |
| Country of origin | USA |
Capacity x Resolution
| Model | lbFin | ozFin | kgFmm | Ncm | Nm |
|---|---|---|---|---|---|
| MTT05-12 | 12 × 0.005 | 192 × 0.1 | 14 × 0.01 | 135 × 0.1 | 1.35 × 0.001 |
| MTT05-25 | 25 × 0.01 | 400 × 0.2 | 28 × 0.02 | 290 × 0.2 | 2.9 × 0.002 |
| MTT05-50 | 50 × 0.02 | 800 × 0.5 | 58 × 0.05 | 570 × 0.5 | 5.7 × 0.005 |
| MTT05-100 | 100 × 0.05 | 1600 × 1 | 116 × 0.1 | 1150 × 0.5 | 11.5 × 0.005 |
Format: Capacity × Resolution
