Mark-10 Series TT02
Functions at a Glance
- Accuracy: — Of reading:±0.5% of reading, from 10% to 100% of full scaleOf full scale:±0.3%
- Sampling rate: — 7,000 Hz
- Power: — AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
- Battery life: — Backlight on:up to 7 hours of continuous useBacklight off:up to 24 hours of continuous use
- Measurement units: — ozFin, lbFin, kgFcm, Nm, Ncm
- Output: — USB / RS-232:Configurable up to 115,200 baud.Mitutoyo (Digimatic):Serial BCD suitable for all Mitutoyo SPC-compatible devices.Analog:±1 VDC, ±0.25% of full scale at capacity,General purpose:Three open drain outputs, one input.Set points:Three open drain lines, 40 VDC max., 100 mA DC max.
- Configurable settings: — 1st/2nd peak, digital filters, outputs, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration
- Safe overload: — 150% of full scale (display shows “OVER” at 110% and above)
Mark-10 Series TT02
Key Highlights

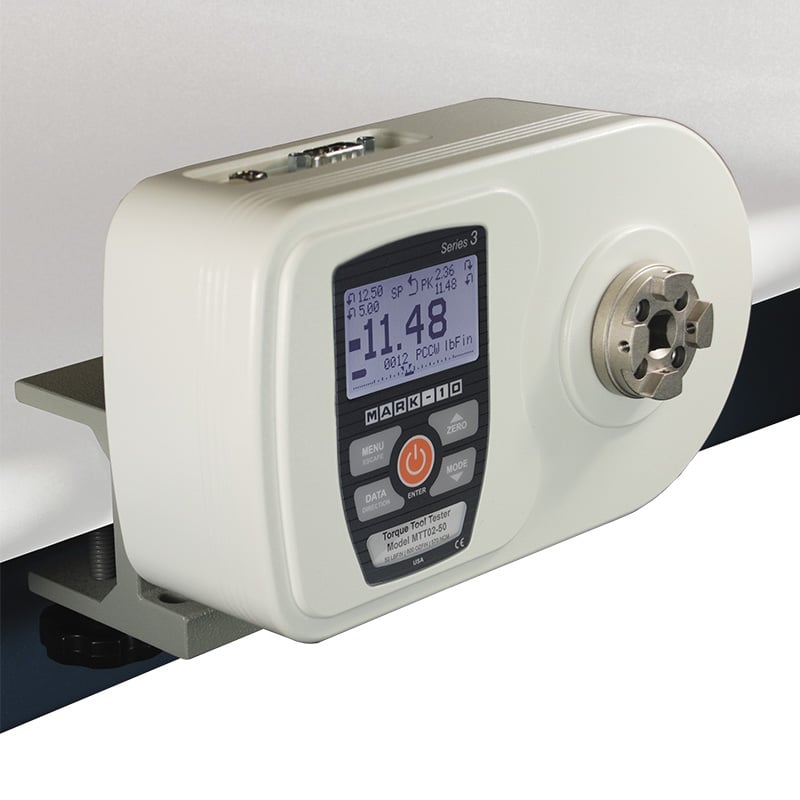

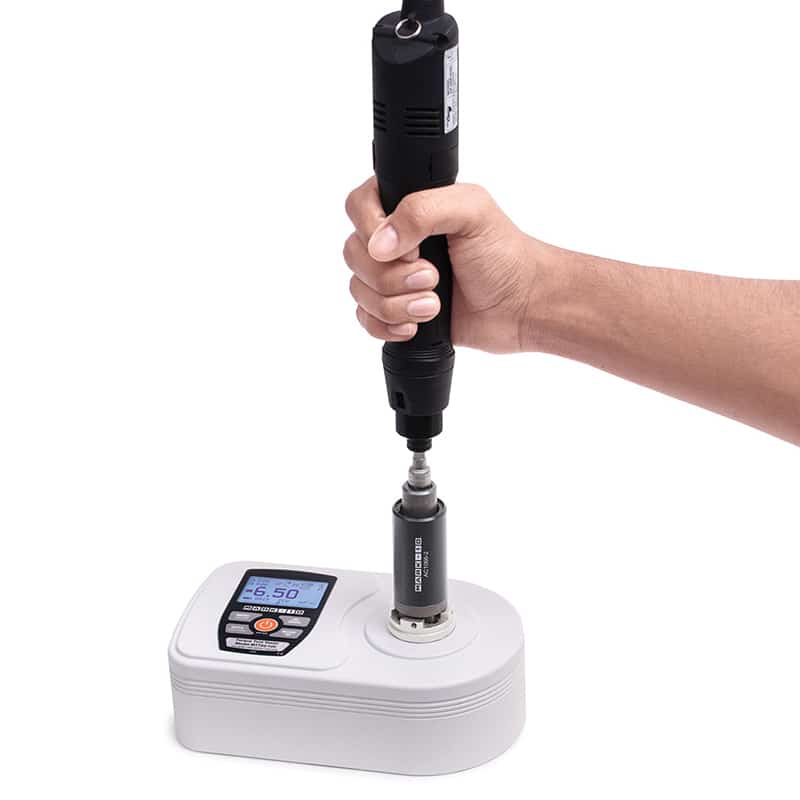

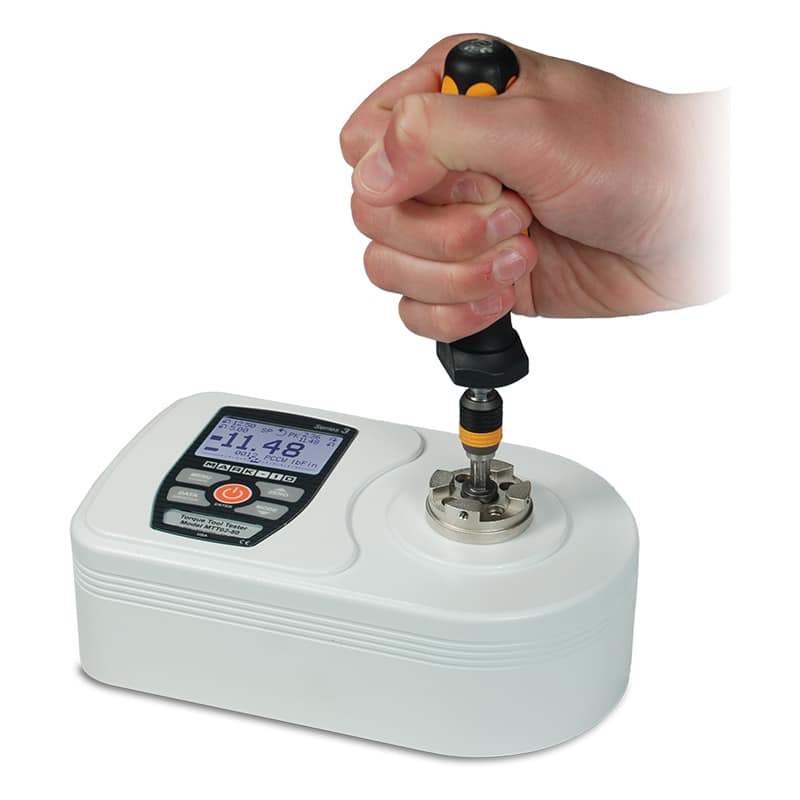

Series TT02 Torque Tool Testers present a simple and accurate solution for testing manual, electric, and pneumatic torque screwdrivers, wrenches, and other tools. These testers are compact and rugged, suitable for production environments. A universal 3/8” square receptacle accepts common bits and attachments. The TT02 captures peak torque in both measurement directions, and also calculates 1st and 2nd peaks, useful for click-type tools. A blazingly fast sampling rate of 7,000 Hz and accuracy of ±0.3% produce reliable and consistent test results.
| Specification | Details |
|---|---|
| Accuracy | Of reading: ±0.5% of reading, from 10% to 100% of full scale. Of full scale: ±0.3% |
| Sampling rate | 7,000 Hz |
| Power | AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low. |
| Battery life | Backlight on: up to 7 hours of continuous use. Backlight off: up to 24 hours of continuous use. |
| Measurement units | ozFin, lbFin, kgFcm, Nm, Ncm |
| Output | USB / RS-232: Configurable up to 115,200 baud. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VDC, ±0.25% of full scale at capacity. General purpose: Three open drain outputs, one input. Set points: Three open drain lines, 40 VDC max., 100 mA DC max. |
| Configurable settings | 1st/2nd peak, digital filters, outputs, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration |
| Safe overload | 150% of full scale (display shows “OVER” at 110% and above) |
| Weight | 5.8 lb [2.6 kg] |
| Shipping weight | 9 lb [4.1 kg] |
| Environmental requirements | 40°F – 100°F [5°C – 45°C], < 96% humidity (non-condensing) |
| Warranty | 3 years (see individual statement for further details) |
| Model no. | MTT02 (all capacities) |

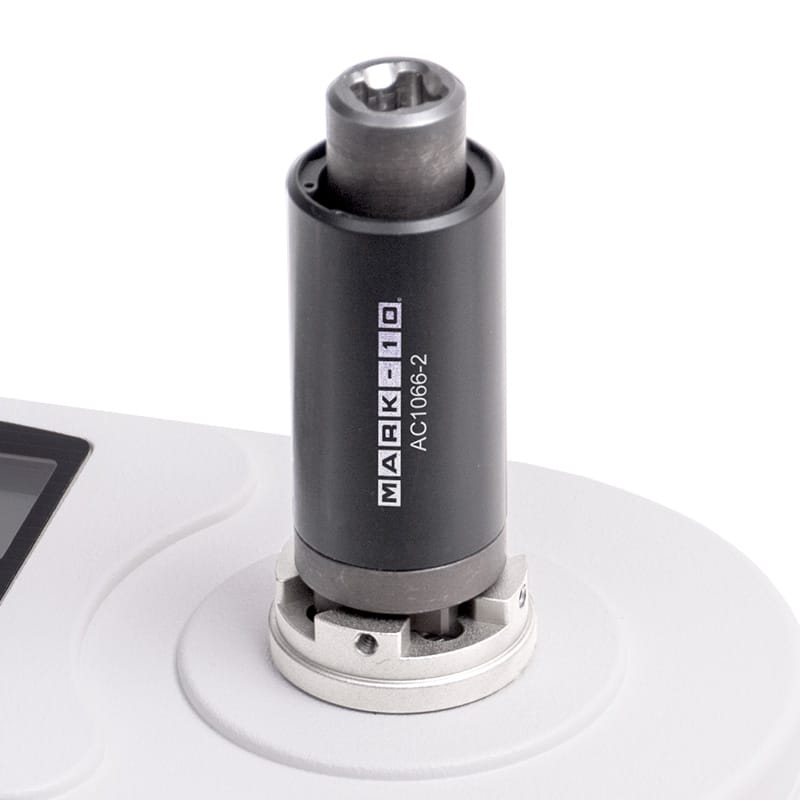

| HS code | 9024100000 (MTT02 all capacities); 9024800000 (CERT, ST001,2, AC1066-1,-2, 15-1004, AC1111, AC1109, AC1110, AC1118, AC1030, AC1031, AC1032, AC1035) |
| ECCN | EAR99 |
| Country of origin | USA |
Capacity x Resolution
| Model | ozFin | lbFin | kgFcm | Ncm | Nm |
|---|---|---|---|---|---|
| MTT02-12 | 192 × 0.1 | 12 × 0.005 | 14 × 0.01 | 135 × 0.1 | 1.35 × 0.001 |
| MTT02-25 | 400 × 0.2 | 25 × 0.01 | 28 × 0.02 | 290 × 0.2 | 2.9 × 0.002 |
| MTT02-50 | 800 × 0.5 | 50 × 0.02 | 58 × 0.05 | 570 × 0.5 | 5.7 × 0.005 |
| MTT02-100 | 1600 × 1 | 100 × 0.05 | 116 × 0.1 | 1150 × 0.5 | 11.5 × 0.005 |
Format: Capacity × Resolution
