Mark-10 Series R05
Functions at a Glance
- Model — lbF
- MR05-500 — 500 x 0.2
- Model — lbF
- MR05-500 — 500 x 0.5
- Model — Description
- MR05-500 — Force sensor, 500 lbF / 8000 ozF / 250 kgF / 2500 N / 2.5 kN
- CERT-SI — Combined certificate of calibration with data, indicator + sensor, calibrated as a set
Description

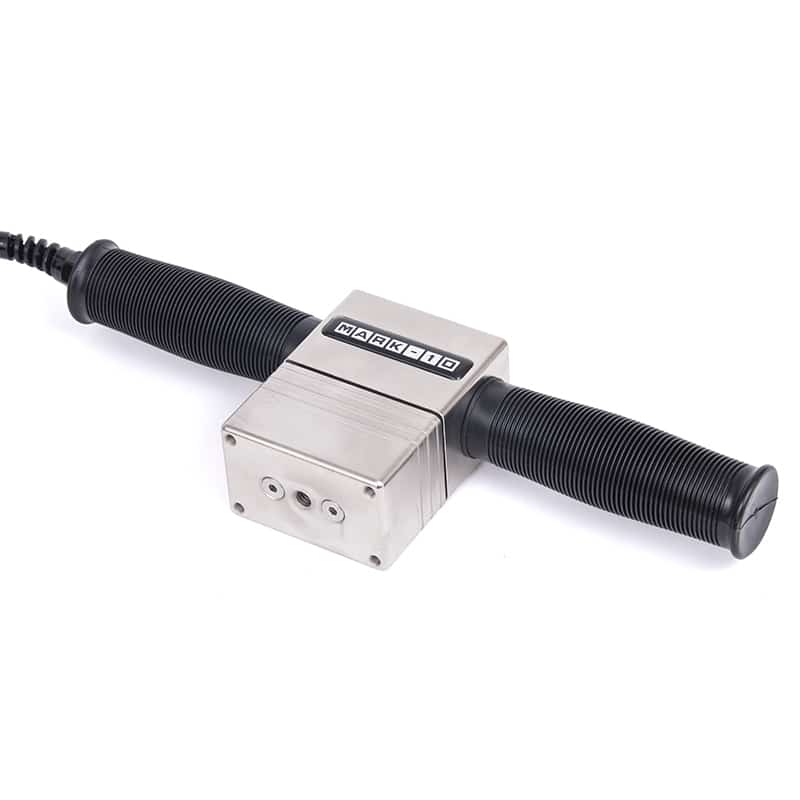

Mark-10 Series R05
Key Highlights

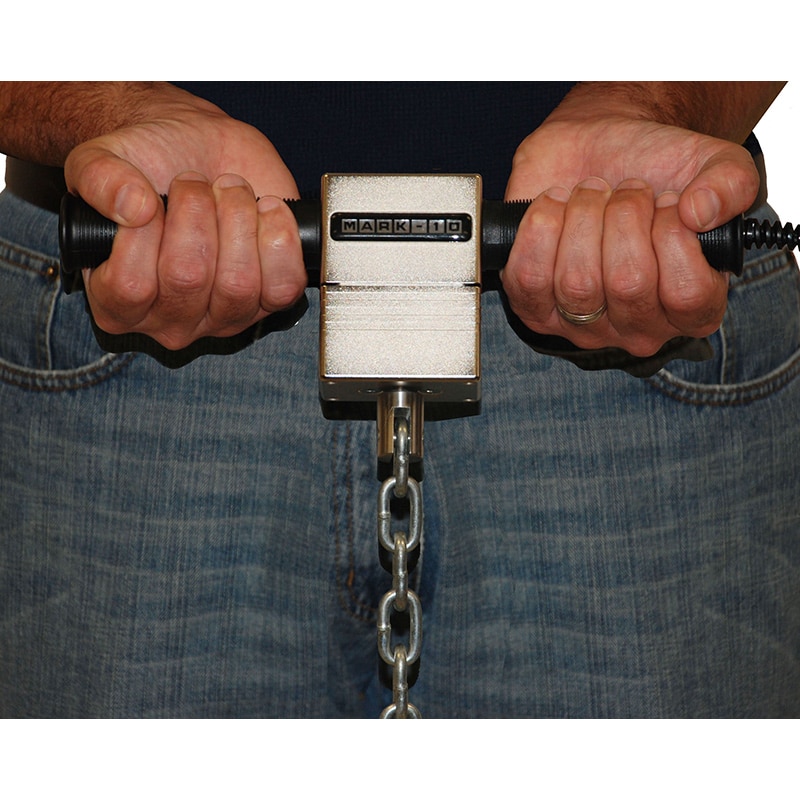

Series R05 fully enclosed smart sensors are designed for pull / push measurements. Useful in ergonomics testing, workplace safety testing, and general lifting or tension / compression requirements. Threaded holes are supplied to accommodate various mounting configurations and attachments. For up to 500 lbF [2,500 N].

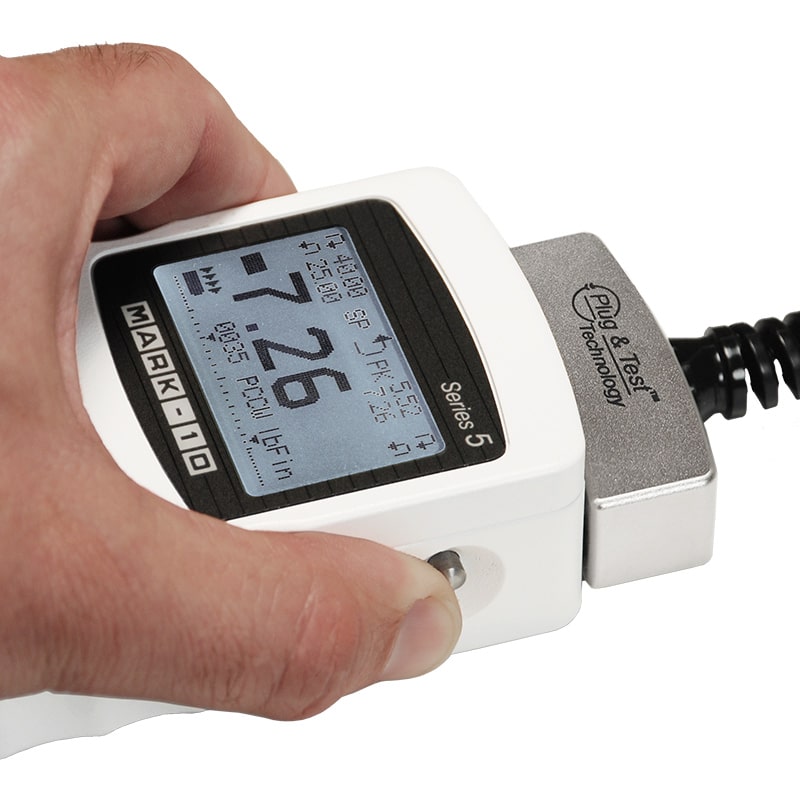

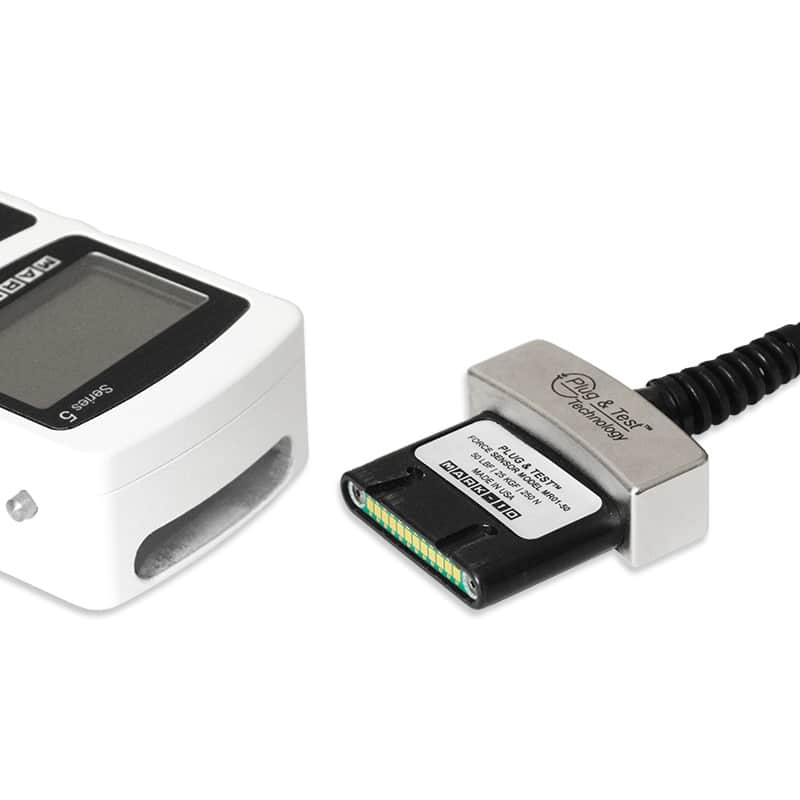

With Model M7I and M5I Indicators
| Model | lbF | ozF | kgF | N | kN |
|---|---|---|---|---|---|
| MR05-500 | 500 × 0.2 | 8000 × 5 | 250 × 0.1 | 2500 × 1 | 2.5 × 0.001 |
Format: Capacity × Resolution
With Model M3I Indicator
| Model | lbF | kgF | N |
|---|---|---|---|
| MR05-500 | 500 × 0.5 | 250 × 0.2 | 2500 × 2 |
Format: Capacity × Resolution
