Mark-10 Models ES10 & ES20 Manual Test Stands
Functions at a Glance
- Small size
- Compatible with all Mark-10 force gauges, accessories and grips
- Mounting holes for bench mounting

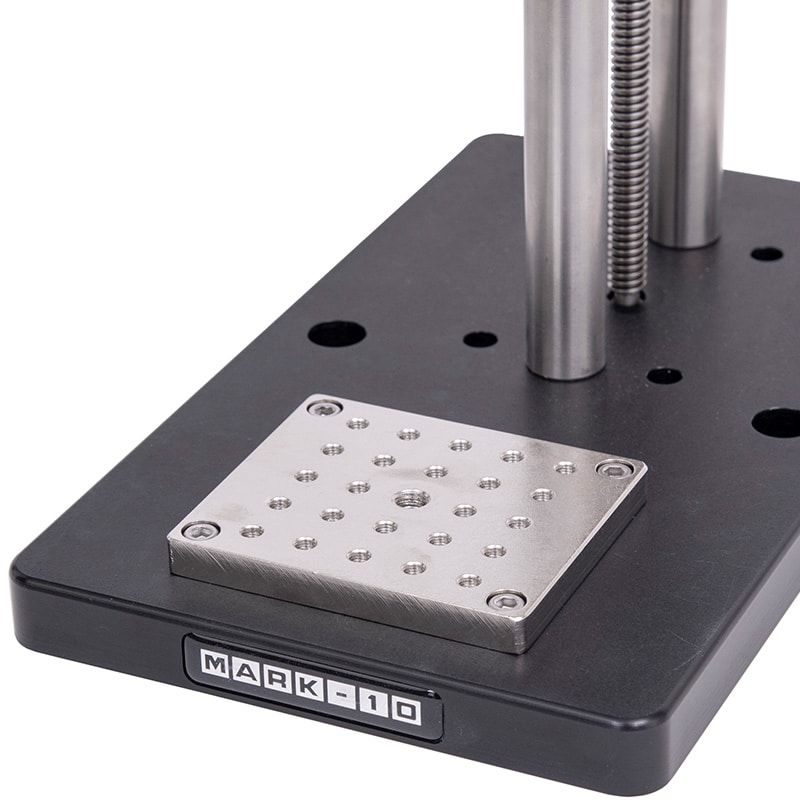

- Large base plate with 5 #10-32 UNF holes for fixture mounting
- Competitor force gauge mounting kits available
Description
Mark-10 Models ES10 & ES20
| Specification | ES10 | ES20 |
|---|---|---|
| Maximum Force | 100 lbF [500 N] | 100 lbF [500 N] |
| Maximum Travel | 9″ [229 mm] | 9″ [229 mm] |

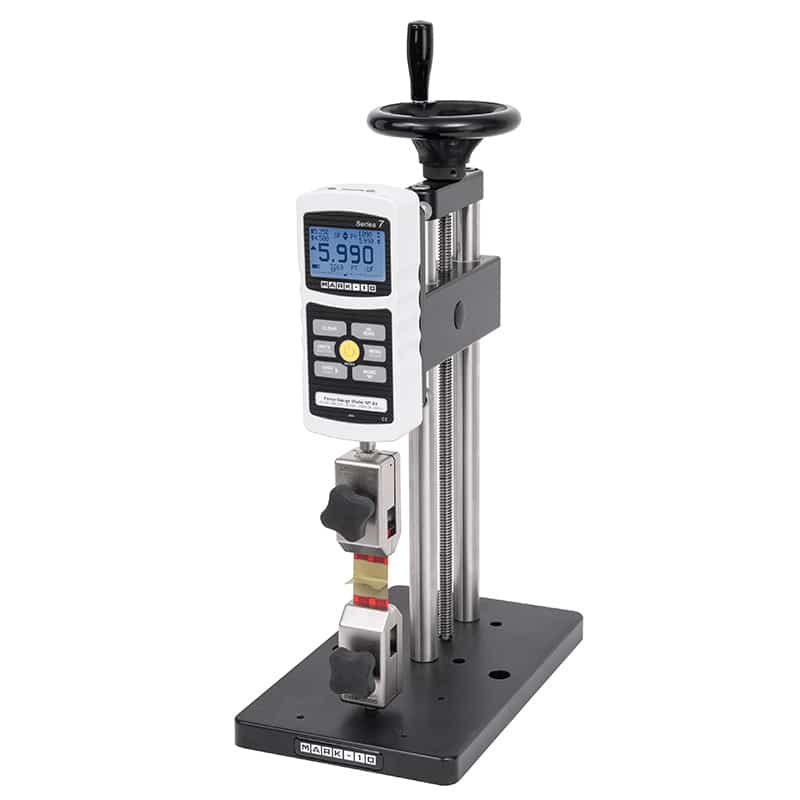

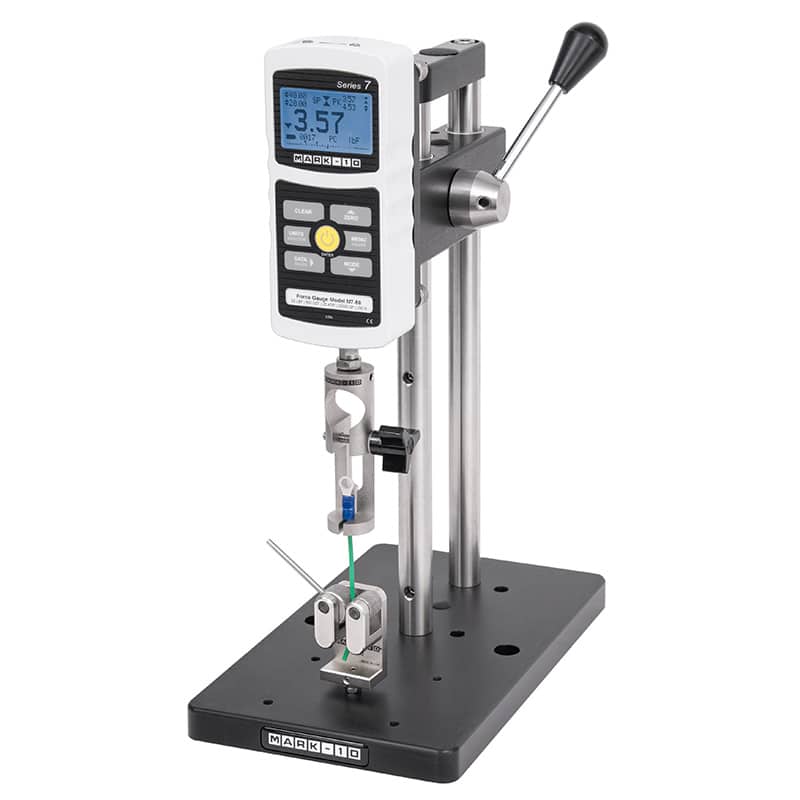

| Loading Method | Lever (can be placed in 3 positions for ease of operation) | Top-mounted hand wheel |
| Travel Rate | 1.050″ [26.7 mm] / lever rev. | 0.083″ [2.1 mm] / wheel rev. |
| Weight | 10 lb [4.5 kg] | 10 lb [4.5 kg] |
| Shipping weight | 12 lb [5.4 kg] | 12 lb [5.4 kg] |
| Model No. | HS Code | ECCN | Country of Origin |
|---|---|---|---|
| ES10, ES20 | 9024900000 | EAR99 | USA |
| ES001, ES002, ES001NI, ES001NI-8MM, AC1060 | 9024800000 | EAR99 | USA |
Key Highlights

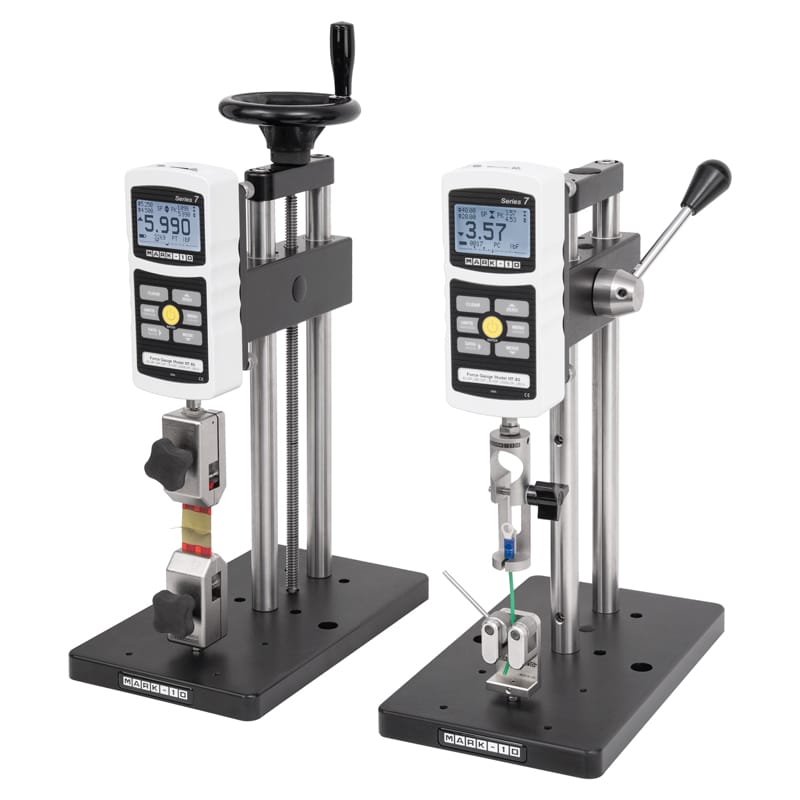

The ES10 and ES20 manual test stands are compact and economical solutions for compression and tensile testing of small samples. Choose between a lever (ES10) for quick-action testing or a hand wheel (ES20) for more precise testing with greater consistency in testing results.

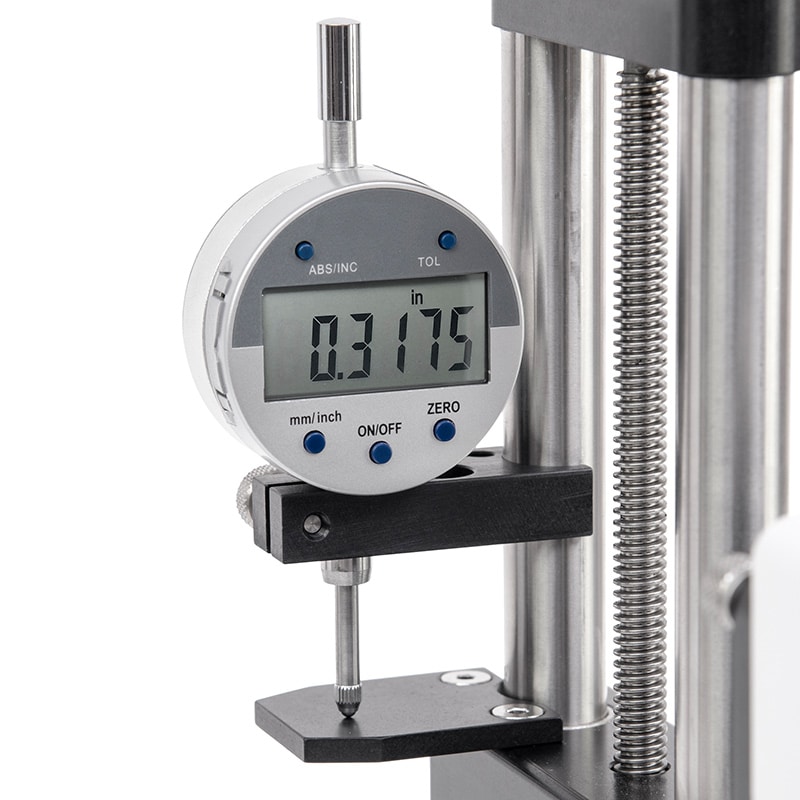

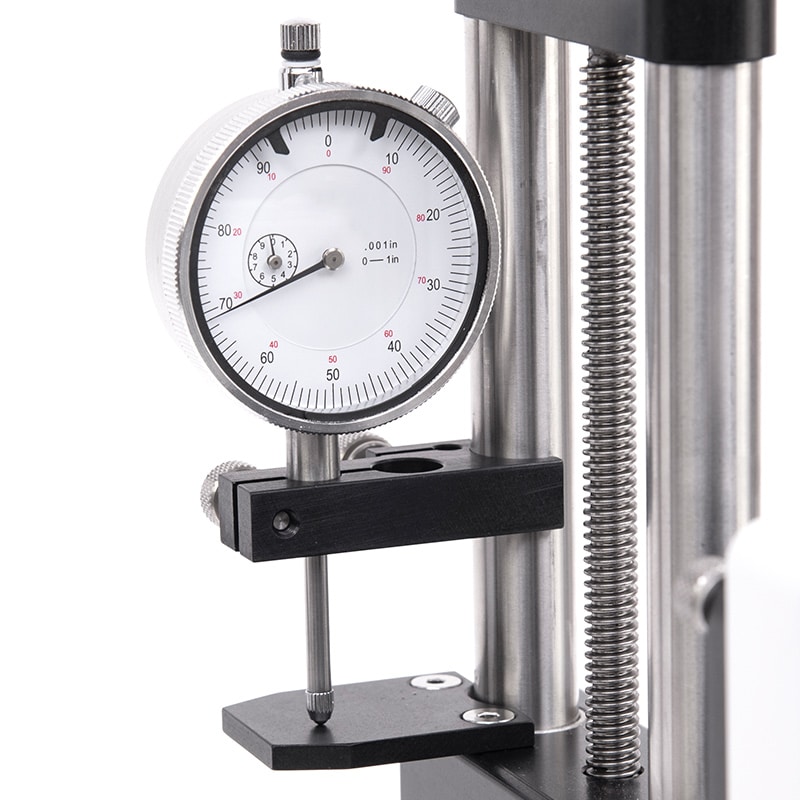

Optional dial and digital indicator kits display up to 1″ (25 mm) of displacement.
