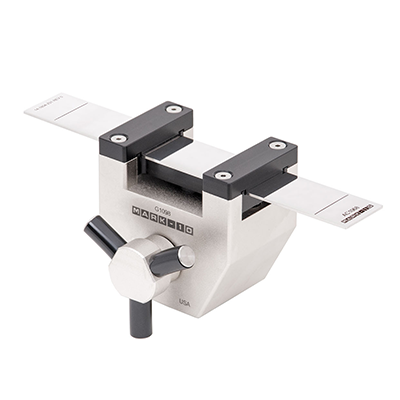

Mark-10 Loop Tack Fixture – G1098
Functions at a Glance

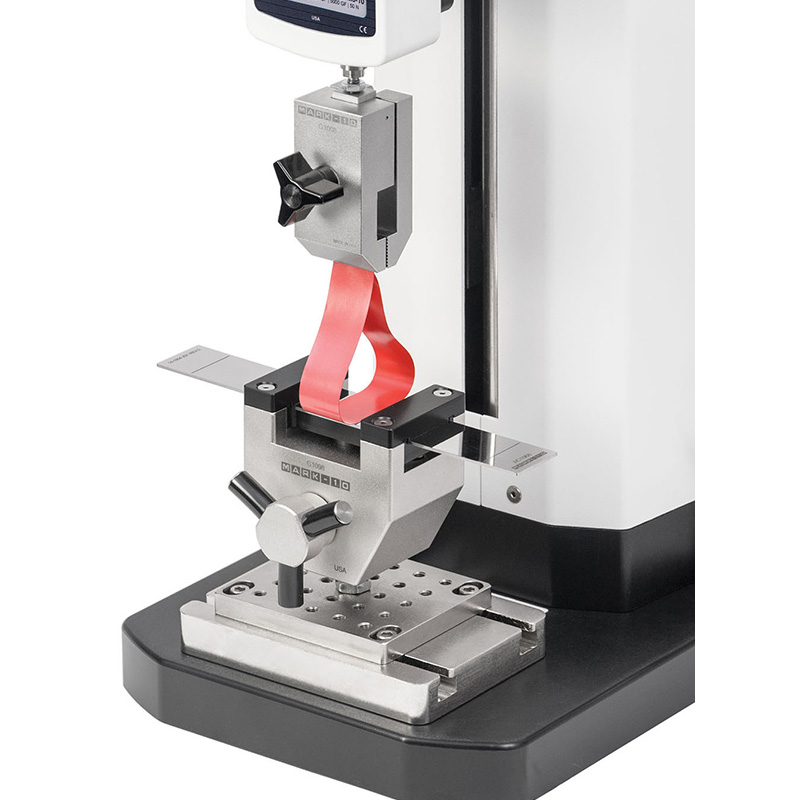

Designed for tack force testing of pressure-sensitive adhesives, in conformance with ASTM D6195 and related standards. A looped sample is loaded onto the test strip, and the closed end of the loop is secured by an upper grip (not included – suggested model: G1008). The test strip may be indexed in three positions, allowing for three tests to be performed between cleaning cycles. The strip is secured and released by a lever-operated clamp.

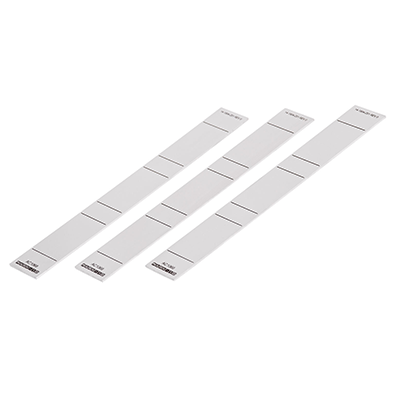

An additional set of three test strips is available.
Description
Mark-10 Loop Tack Fixture
- Capacity:
100 lbF [500 N] - Weight (including one test strip):
1.1 lb [0.5 kg] - Shipping weight: 2 lb [0.9 kg]
- Test strip material:
T304 SS, per ASTM A666 - HS code:
G1098, AC1068: 9024800000 - ECCN
EAR99 - Country of origin:
USA
