Mark-10 3-point / 4-point Bend Fixtures for ASTM C393, C1161, D790 – G1095/G1096/G1097
Functions at a Glance
- Model — Description

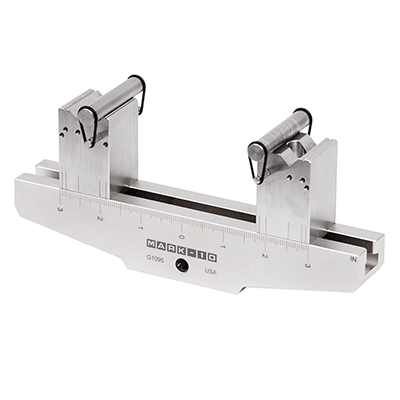

- G1095 — Bend fixture base, 500 lbF

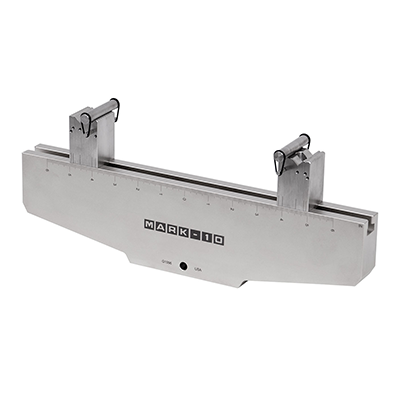

- G1096 — Bend fixture base, 2,000 lbF

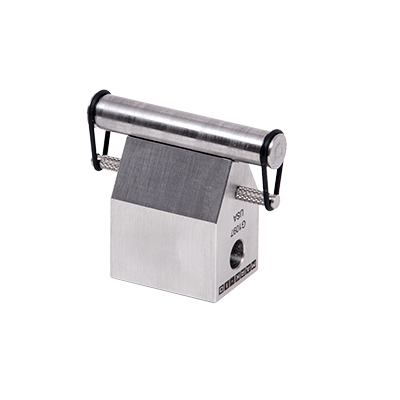

- G1097 — Upper anvil for bend fixture bases, 2,000 lbF
Description
Mark-10 3-point / 4-point Bend Fixtures for ASTM C393, C1161, D790
| Model | Description |
| G1095 | Bend fixture base, 500 lbF |
| G1096 | Bend fixture base, 2,000 lbF |
| G1097 | Upper anvil for bend fixture bases, 2,000 lbF |
| AC1067 | Supports for bend fixtures, 1 mm dia., set of 4 |
| AC1067-1 | Supports for bend fixtures, 2 mm dia., set of 4 |
| AC1067-2 | Supports for bend fixtures, 5 mm dia., set of 4 |
| AC1067-3 | Additional set of supports for bend fixtures, 10 mm dia., set of 4 (included with bend fixture bases) |
Key Highlights

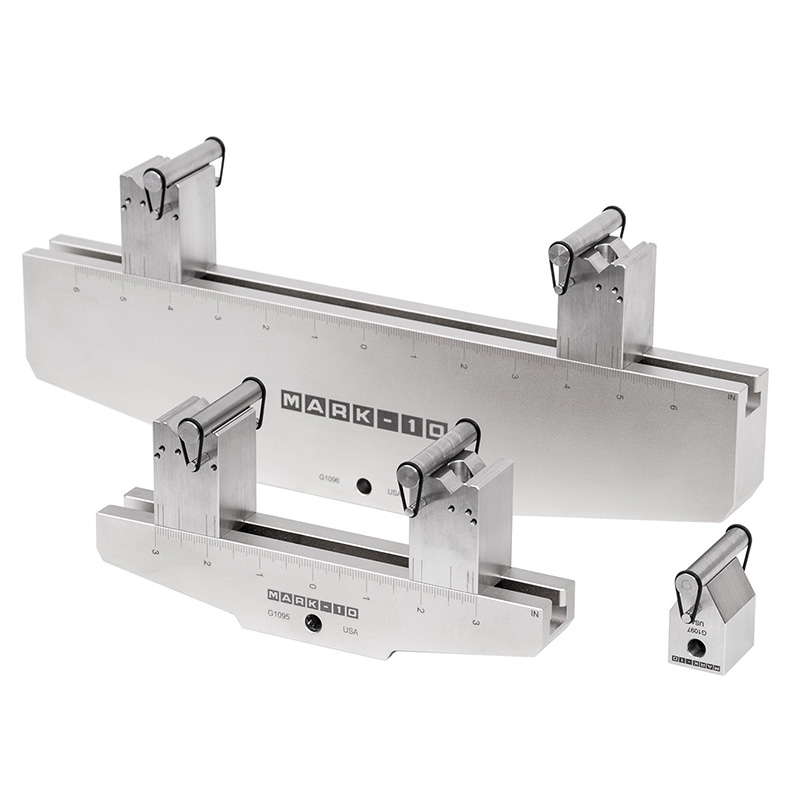

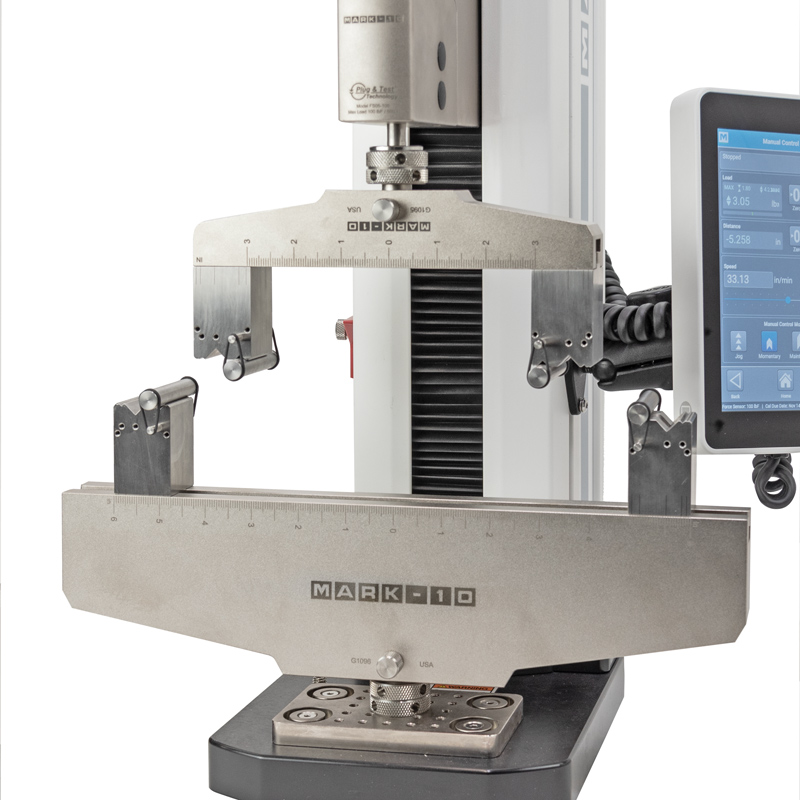

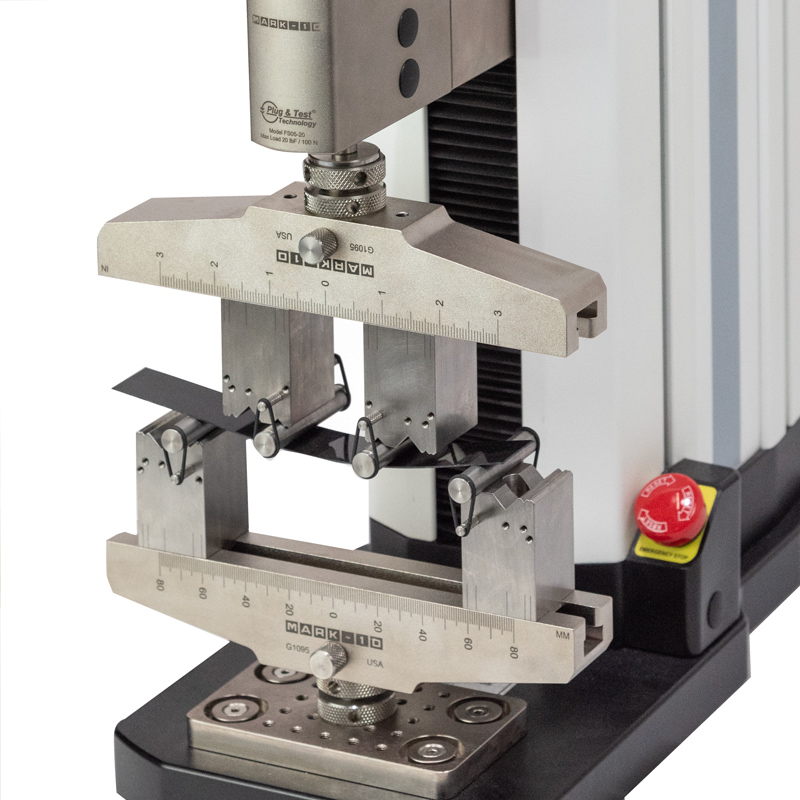

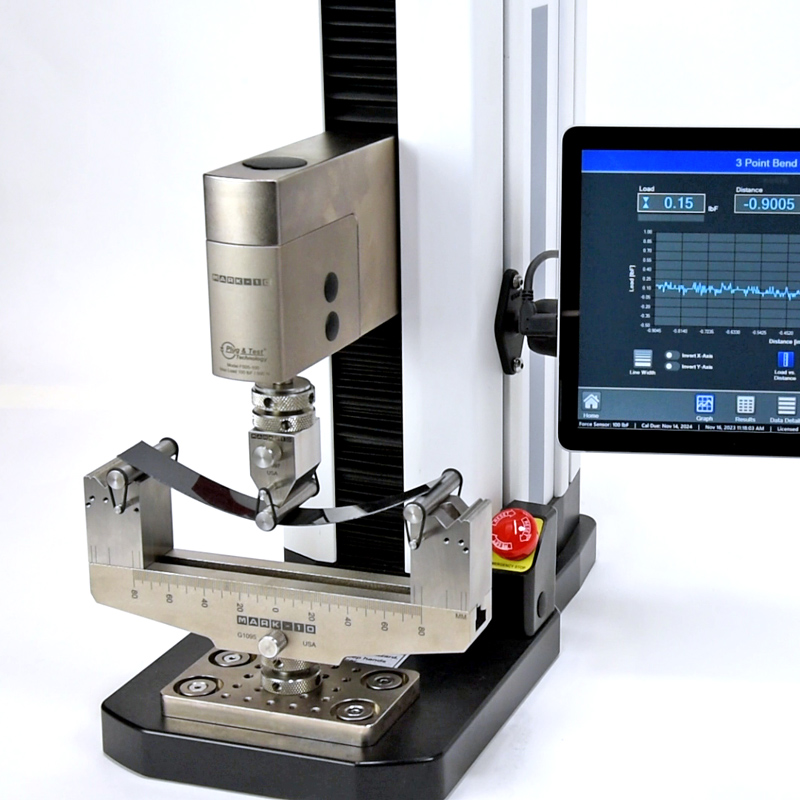

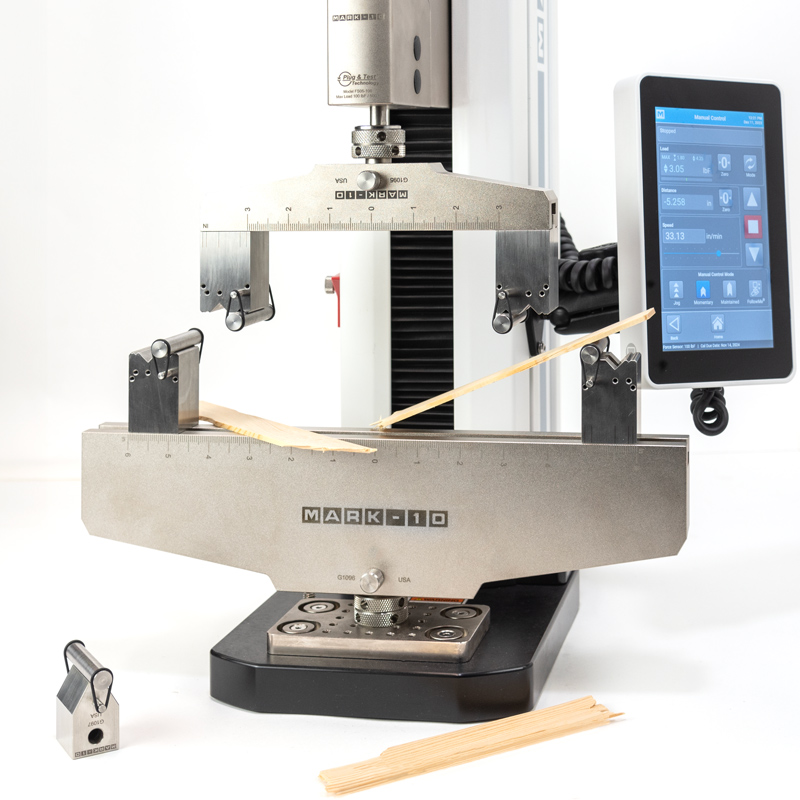

This family of bend fixtures is designed for 3-point and 4-point bend testing of plastics, metals, ceramics, tubing, and many other materials. Two base sizes are available, along with an upper anvil, and optional support diameters. Use a base-anvil combination for 3-point bend testing or two bases for 4-point bend testing. The fixtures conform to ASTM C393, C1161, D790, and related standards. Bases feature movable blocks with multiple V-grooves to accept several support diameters. 10 mm dia. supports are included, and other sizes are available.
