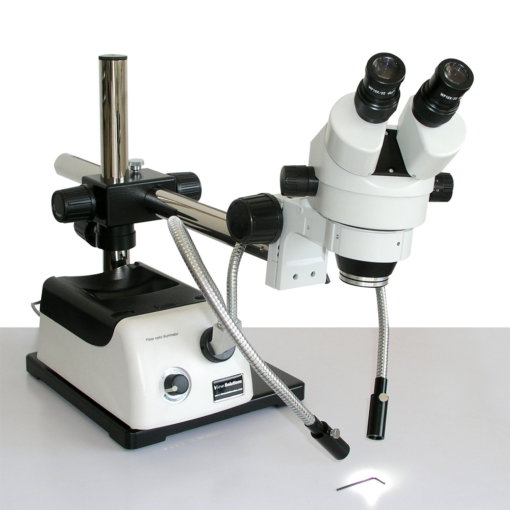

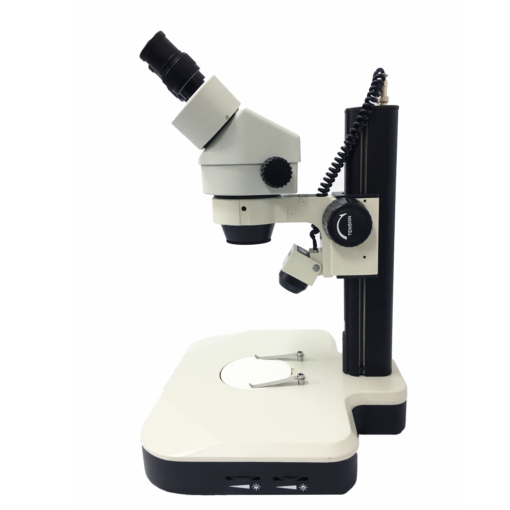

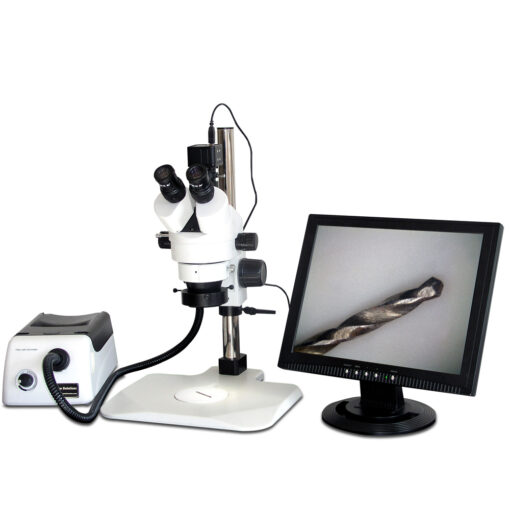

0.7X-4.5X Stereo Zoom Microscope
SZ4-45 features good performance and high quality. It is ideal for schools, scientific research institutes and industrial field. It can generate a high definition 3D images with large depth of field. Super long working distance gives more work space. The horizontal dual zoom knobs with detents are more flexible and comfortable.
Description
Optics Parameter
High-eyepoint and wide field Eyepieces can be attached to Stereo Zoom Microscope, and the continuous magnification is from 0.7X-4.5X. For the convenience of eyeglasses wearer, optional high-eyepoint and wide field eyepieces.
| Auxiliary Lens | Eyepiece | Working distance (mm) |
|||||
| WF10X20 *(INC) | WF15X15 | WF20X10 | |||||
| Total Magnification | FOV (mm) | Total Magnification | FOV (mm) | Total Magnification | FOV (mm) | ||
| 0.3X | 2.1X-13.5X | 95.2-14.8 | 3.0X-20.3X | 79.6-11.9 | 4.0X-27.0X | 59.7-8.9 | 287mm |
| 0.5X | 3.5X-22.5X | 57.1-8.9 | 5.0X-33.8X | 47.8-7.1 | 6.7X-45.0X | 35.8-5.3 | 177mm |
| 0.75X | 5.25X-33.75X | 38.1-5.9 | 7.5X-50.6X | 31.8-4.7 | 10.1X-67.5X | 23.9-3.36 | 117mm |
| 1X *(INC) | 7X-45X | 28.6-4.4 | 10.1X-67.5X | 23.9-3.6 | 13.4X-90.0X | 17.9-2.7 | 100mm |
| 1.5X | 10.5X-67.5X | 19-3 | 15.1X-101.3X | 5.9-2.4 | 20.1X-135.0X | 11.9-1.8 | 47mm |
| 2X | 14X-90X | 14.3-2.2 | 20.1X-135X | 11.9-1.8 | 26.8X-180X | 9-1.3 | 26mm |
*Included (INC)
