Mark-10 Wire Terminal Pull Grip – G1076
Functions at a Glance

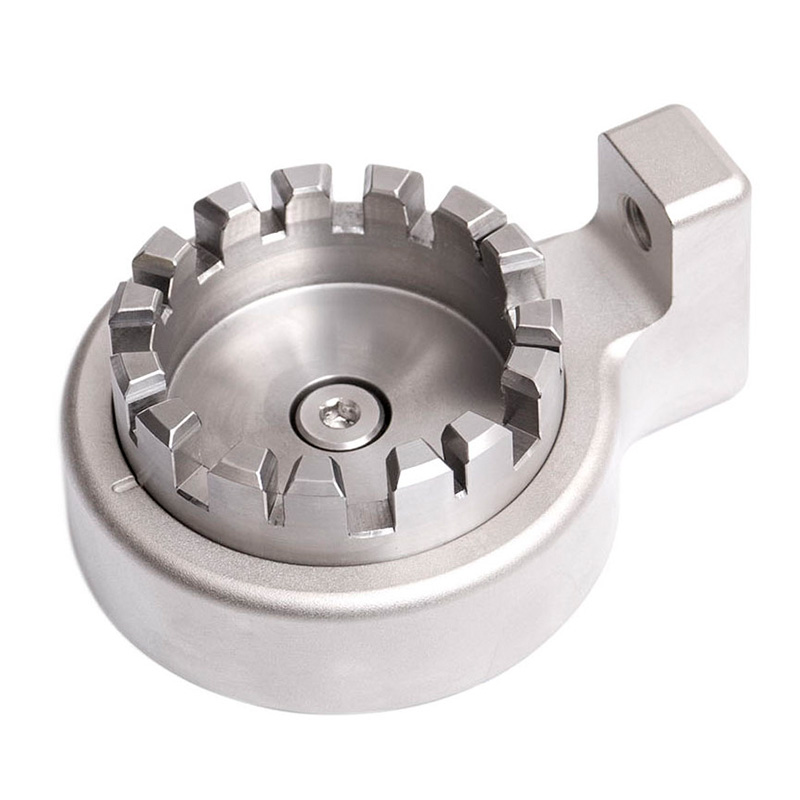

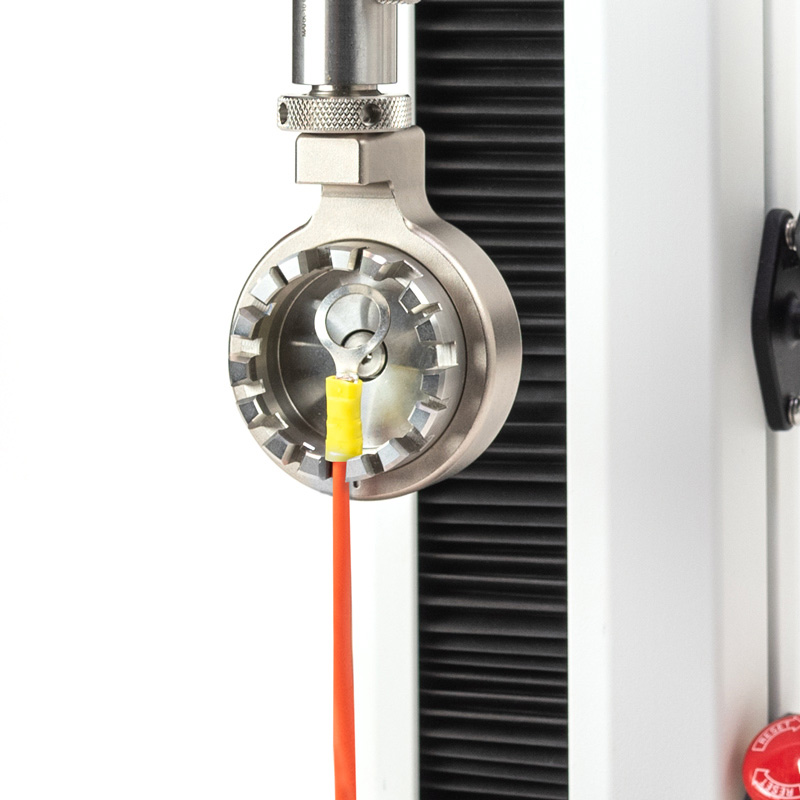

This grip is designed for wire pull testing applications. The grip secures wire terminals, cables, connectors, and other samples for wire pull tests. Grooves of multiple sizes are provided to accommodate a wide range of wire diameters up to 0.25 in. (6.3 mm). Simply rotate the turret wheel to the desired size. Integrated magnets hold the wheel in place to help prevent accidental rotation to a different sized groove.

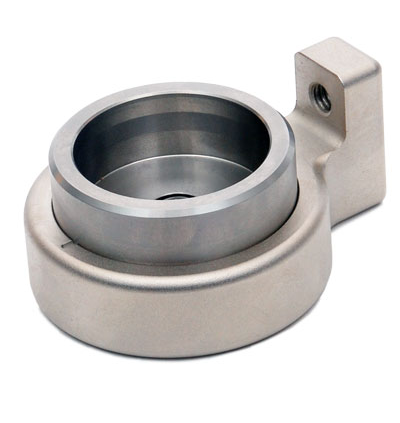

For unique sample shapes and sizes, a blank machinable terminal fixture is also available.

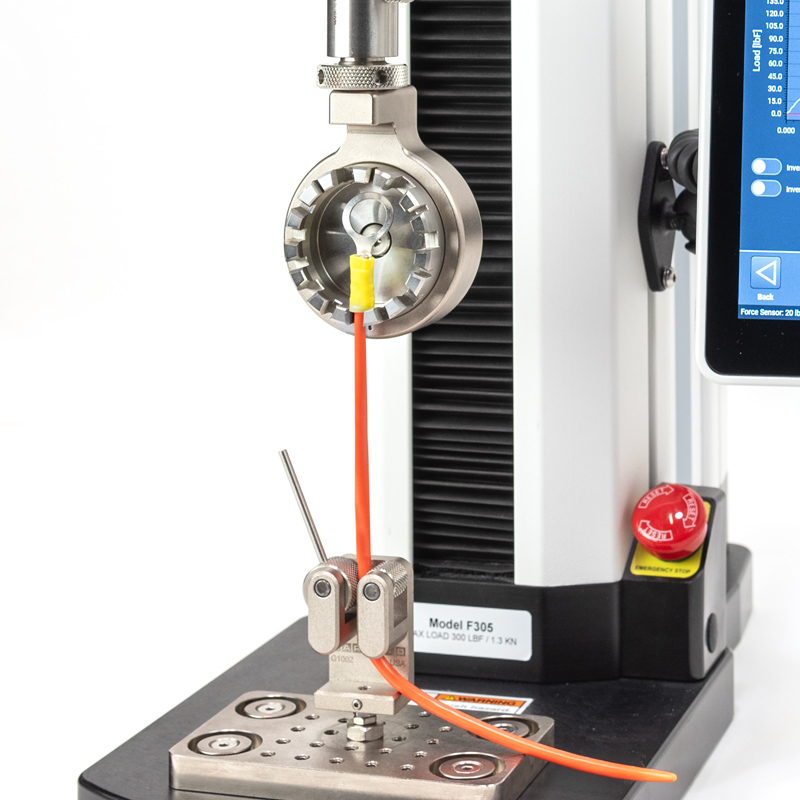

Commonly used with the G1002 dual roller grip.
Description
Mark-10 Wire Terminal Pull Grip
- Rotating turret with magnetic detents snaps to the desired slot width
- Available blank insert for unique sample dimensions
Key Highlights
- Groove sizes [IN(MM)]:
0.03 (0.7), 0.04 (1.0), 0.06 (1.5), 0.08 (2.0), 0.09 (2.3), 0.11 (2.8), 0.12 (3.0), 0.14 (3.5), 0.15 (3.8), 0.17 (4.3), 0.18 (4.5), 0.20 (5.1), 0.21 (5.3), 0.23 (5.8), 0.25 (6.3) - Wire diameter range:
0 – 0.25 in [6.3 mm] - Capacity:
500 lbF [2,500 N] - Weight:
1.0 lb [0.45 kg] - HS code:
G1076, WT3003, G1018-2: 9024800000 - ECCN:
EAR99 - Country of origin:
USA
