Mark-10 Series R02
Functions at a Glance
- Model — lbF
- MR02-100 — 100 x 0.05
- MR02-200 — 200 x 0.1
- MR02-500 — 500 x 0.2
- MR02-1000 — 1000 x 0.5
- MR02-2000 — 2000 x 1
- MR02-5000 — 5000 x 2
- MR02-10000 — 10000 x 5
Description
Mark-10 Series R02

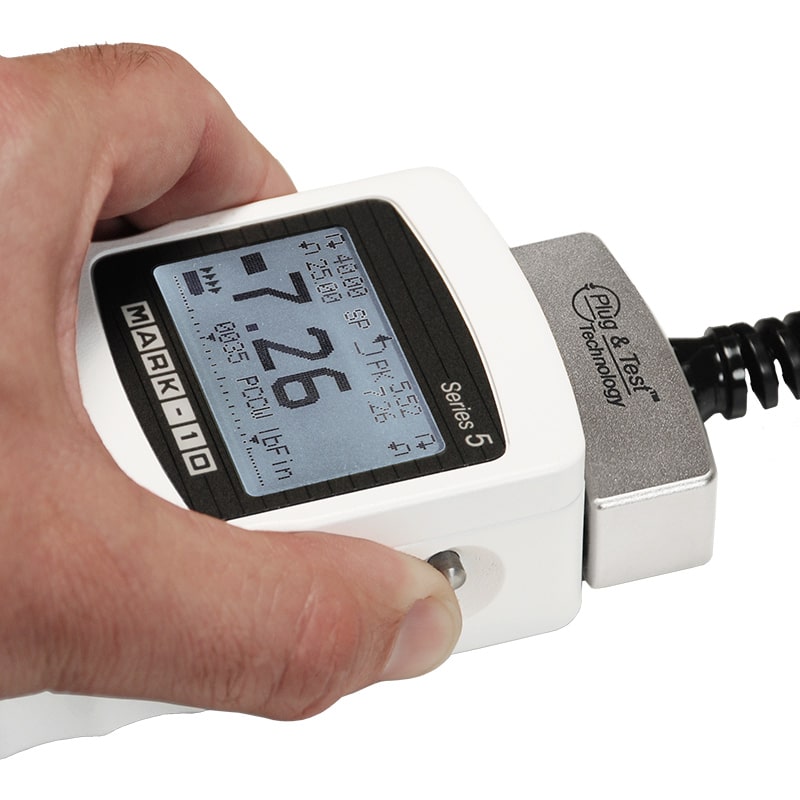

With Models M7I & M5I Indicators
| Model | lbF | ozF | gF | kgF | N | kN |
|---|---|---|---|---|---|---|
| MR02-100 | 100 x 0.05 | 1600 x 1 | 50000 x 20 | 50 x 0.02 | 500 x 0.2 | – |
| MR02-200 | 200 x 0.1 | 3200 x 2 | – | 100 x 0.05 | 1000 x 0.5 | 1 x 0.0005 |
| MR02-500 | 500 x 0.2 | 8000 x 5 | – | 250 x 0.1 | 2500 x 1 | 2.5 x 0.001 |
| MR02-1000 | 1000 x 0.5 | 16000 x 10 | – | 500 x 0.2 | 5000 x 2 | 5 x 0.002 |
| MR02-2000 | 2000 x 1 | 32000 x 20 | – | 1000 x 0.5 | 10000 x 5 | 10 x 0.005 |
| MR02-5000 | 5000 x 2 | – | – | 2500 x 1 | 25000 x 10 | 25 x 0.01 |
| MR02-10000 | 10000 x 5 | – | – | 5000 x 2 | 50000 x 20 | 50 x 0.02 |
With Model M3I Indicator
| Model | lbF | kgF | N | kN |
|---|---|---|---|---|
| MR02-100 | 100 x 0.1 | 50 x 0.05 | 500 x 0.5 | – |
| MR02-200 | 200 x 0.2 | 100 x 0.1 | 1000 x 1 | – |
| MR02-500 | 500 x 0.5 | 250 x 0.2 | 2500 x 2 | – |
| MR02-1000 | 1000 x 1 | 500 x 0.5 | 5000 x 5 | – |
| MR02-2000 | 2000 x 2 | 1000 x 1 | 10000 x 10 | – |
| MR02-5000 | 5000 x 5 | 2500 x 2 | – | 25 x 0.02 |
| MR02-10000 | 10000 x 10 | 5000 x 5 | – | 50 x 0.05 |
Key Highlights

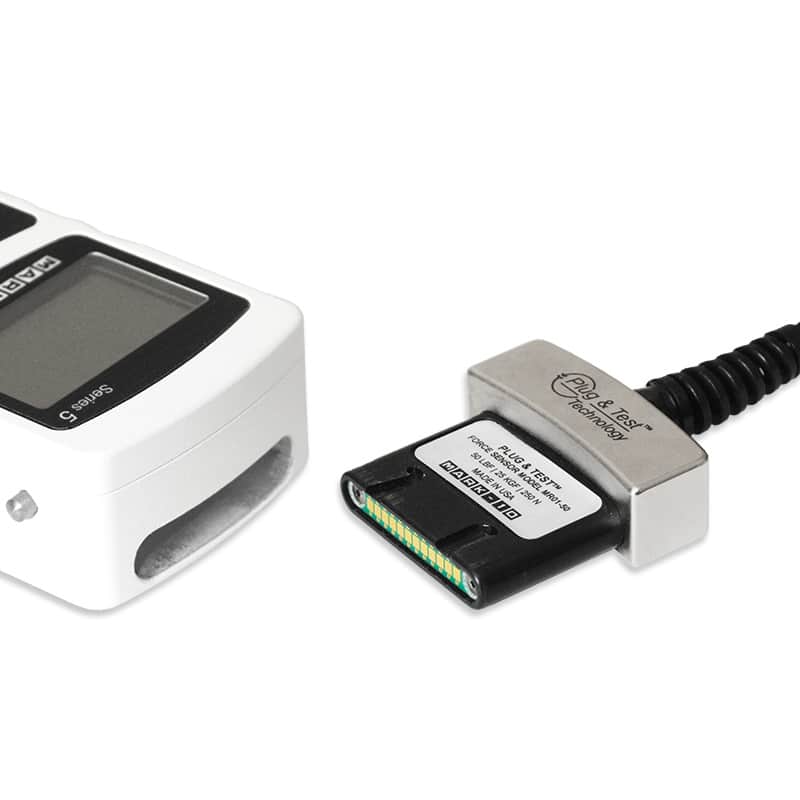

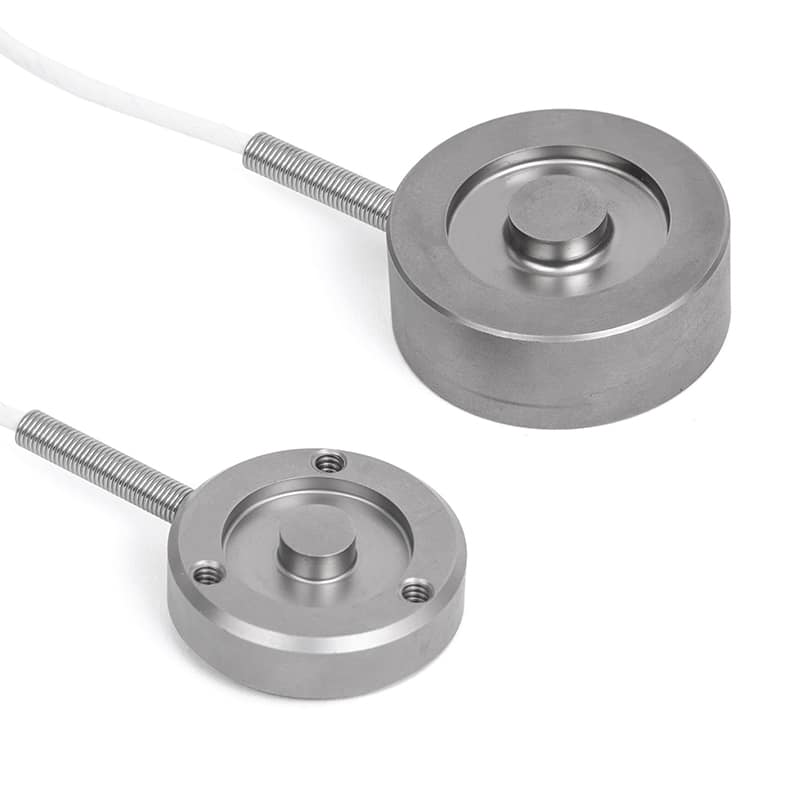

Button sensors for compressive loads of up to 10,000 lbF (50 kN). Compact and rugged, the R02 is ideal for heavy duty applications with space constraints. Compatible with Mark-10 indicators (sold separately), through unique Plug & Test® technology. A combined certificate for the sensor and an indicator is available at time of order, part no. CERT-SI.
Why Choose Besmic Optic?
- Authorised Mark-10 distributor in Malaysia
- Full technical support and after-sales service
- Calibration and product demonstration available on request
- Fast delivery across Malaysia and Southeast Asia
- Over 20 years of precision instrument expertise
