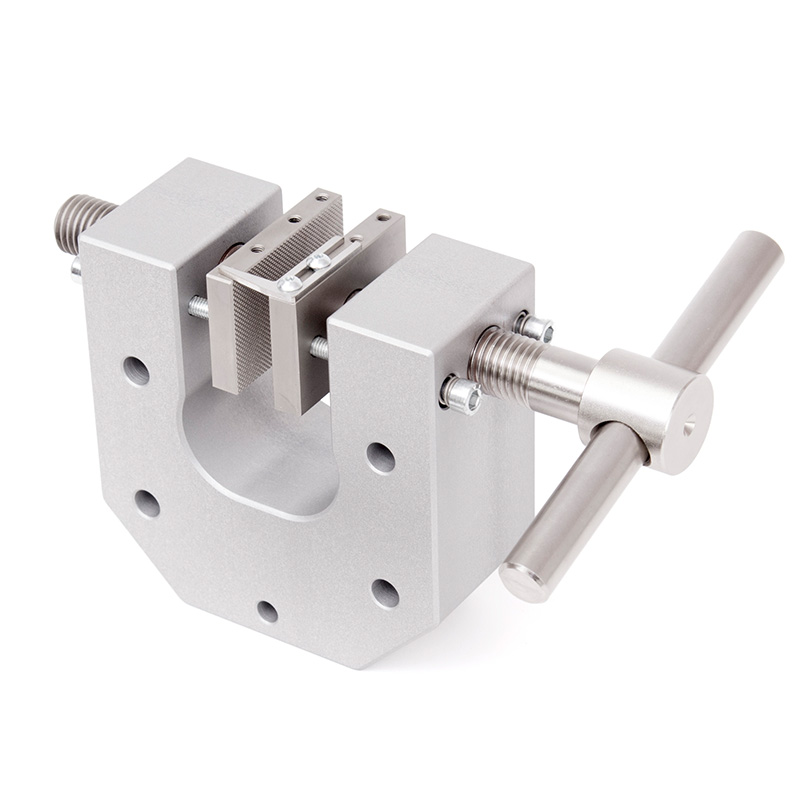

Mark-10 Parallel Jaw Grip, Large – G1100
Functions at a Glance
This rugged grip is ideal for general tensile and pull testing applications up to 2,000 lbF (9 kN). Pyramidal jaw faces and generous clearance effectively secure a wide range of sample materials and sizes.

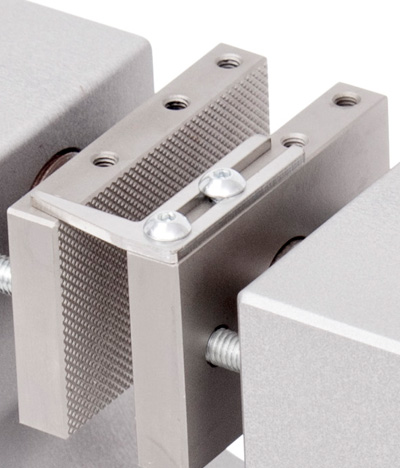

Includes an adjustable stop for consistent sample placement between the jaws.

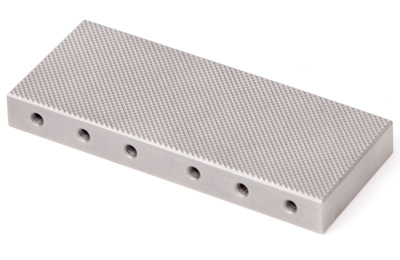

Extended jaw lengths are available, to accommodate larger samples.
Includes integrated eye end mounting, and requires an eye end adapter to mount to Mark-10 force gauges or force sensors, and test stands.
Description
Mark-10 Parallel Jaw Grip, Large
Key Highlights
- Individually adjustable, serrated jaws
- Available extended length jaws
- Capacity:
2,000 lbF [9 kN] - Weight:
5.9 lb [2.7 kg] - Shipping Weight:
7 lb [3.2 kg] - Housing Material:
Aluminum - Jaw Material:
Hardened steel, 58 RC - HS code:
G1100, AC1070-1,-2: 9024800000 - ECCN:
EAR99 - Country of origin:
USA
