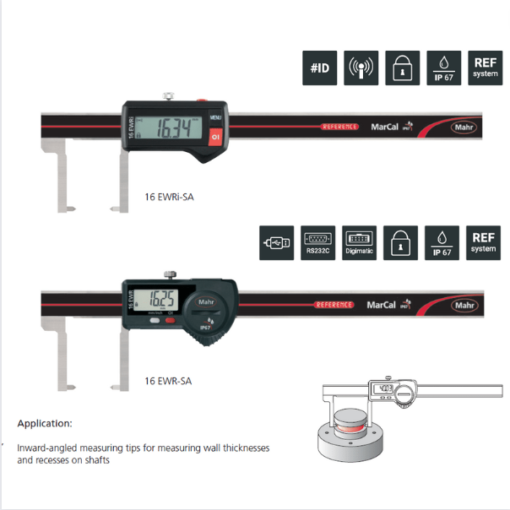

MarCal 16 EWRi-SA / 16 EWR-SA | Digital Caliper for Special Applications

FUNCTIONS 16 EWRI-SA
• ON/OFF
• AUTO-ON / OFF
• mm/inch
• LOCK function (key lock)
• RESET (set display to zero)
• PRESET (for entering a numerical value)
• DATA (data transmission)
• HOLD (storage of measured values)

FUNCTIONS 16 EWR-SA
• ON/OFF
• AUTO-ON / OFF
• mm/inch
• LOCK function (key lock)
• RESET (set display to zero)
• DATA (data transmission via connection cable)
• High contrast analog display
• Locking screw above
• Lapped guideway
• Slide and beam made of hardened stainless steel
• Immediate measurements due to the Reference System
• Raised guideway for the protection of the scale
• Excellent resistance against dust, coolants and lubricants
• Dirt wipers are integrated in the slide

FEATURES 16 EWRI-SA
• SoftwareMarCom Professional free download: www.mahr.com/marcom (only for Mahr data cables and wireless systems with USB and RS232 interface)
• Digit height: 11 mm
• Data interface: Integrated wireless
• Energy supply: Battery life approx. 3 years (approx. 0.5 in wireless mode)
• IP protection category: IP 67
• Package contains: battery, instruction manual, case

FEATURES 16 EWR-SA
• Digit height: 8.5 mm
• Data interface: USB, Opto RS232C, Digimatic
• Energy supply: Battery life approx. 3 years
