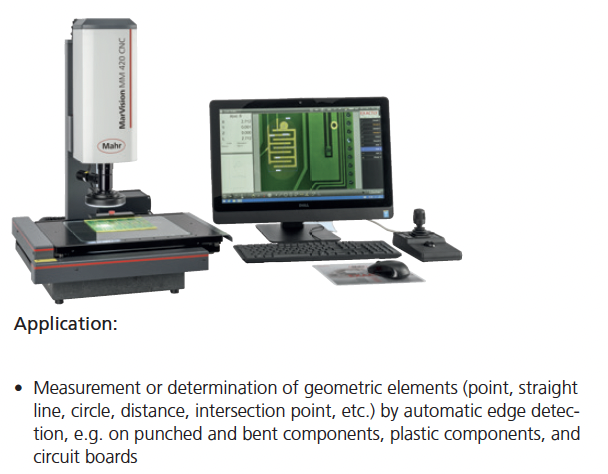

MarVision MM 420 CNC | CNC Workshop Measuring Microscope

FEATURES

Measuring microscope

• 3 axis CNC control with servo motor and joystick

• Axis movement and speed regulation controlled via the joystick

• Integrated color camera

• Motorized zoom lens (0.7x – 4.5x) with automatic focus

• LED ring light: 1 ring and 4 segments, individually switchable and dimmable

• Dimmable LED transmitted light

• Laser pointer for position finding

• Solid granite base

• Sturdy steel XY table, precision mounted

• Optical incremental measuring system for outstanding accuracy and reliability

Control and Display Unit with M3 Software and Touchscreen PC

• 23” touchscreen with keyboard and mouse

• Windows 10 Pro operating system, additional software can be installed

• Operation via the Multi-touch screen or with a mouse/keyboard

• Large video screen

• Reference/actual evaluation with tolerances

• Record output with company logo

• Graphic display with dimensioning

• Automatic edge detection, even on low contrast parts

• Stitching

• Statistics

• Palletizing of serial parts

• Package contains: M3 software with touchscreen PC, standard stop bar 220 as, instruction manual, Mahr calibration certificate

Optional

• 3D tactile measuring system TP20

• Conversion motor zoom to Navitar 4K motor zoom 8x – 116x

• Telecentric light for 4K motorized zoom
