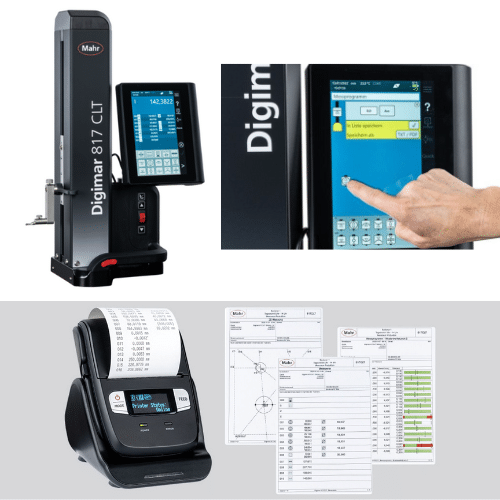

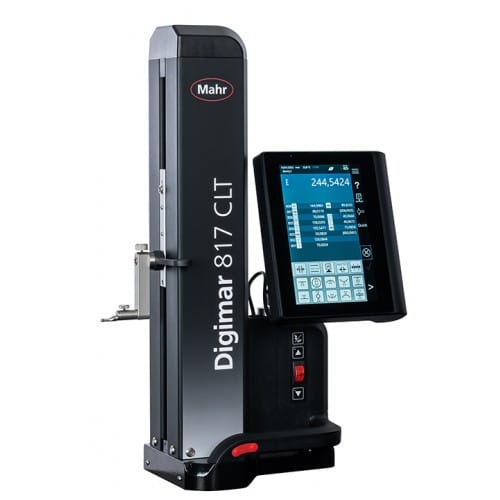

MAHR Height Gage Digimar 817 CLT

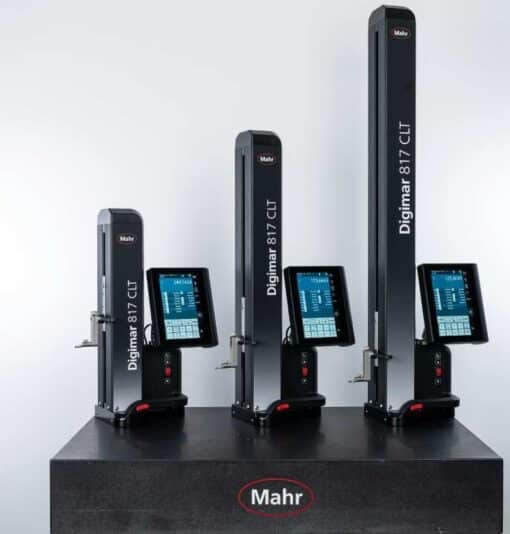

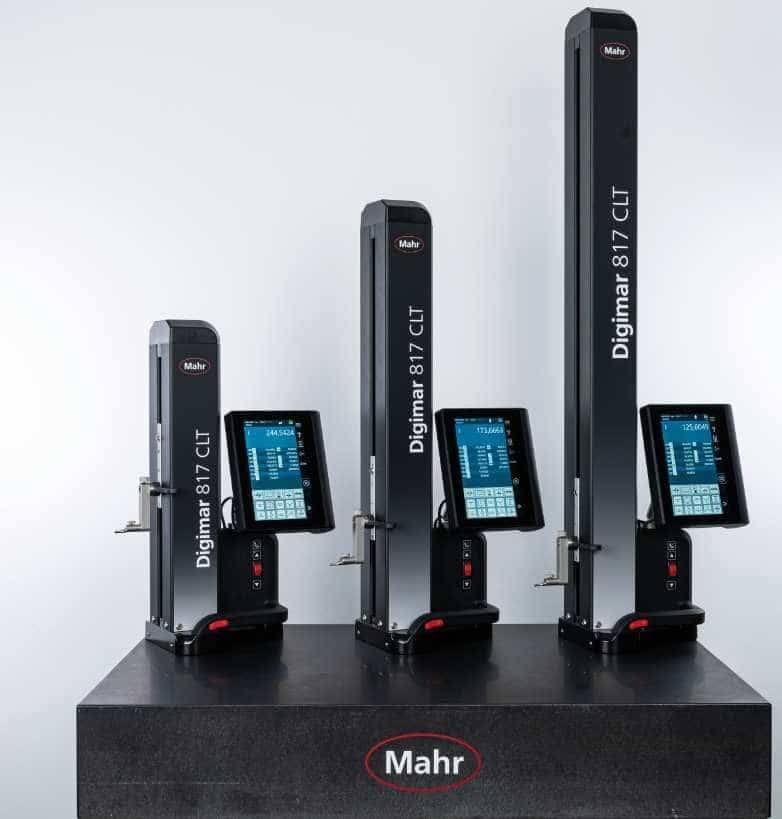

Product No. 4429600, 4429601, 4429602

Functions at a Glance

Contacting from below or above
Bar width or groove spacing including center positioning
Bore and shaft diameter with automatic center calculation
Reversal point bores and shafts (top or bottom)
Distance or symmetry calculations
Dynamic measurement functions
Right angle and straightness measurement
2D mode measurement and measurement programs
Integrated measurement data processing

🔗Download Digimar 817CLT Height Measuring Instrument Brochure.pdf

Functions

Top or bottom contacting
Web width or distances between grooves, including center of web or groove
Bore or shaft diameter, including center of bore or shaft
Bore reversing point (up or down)
Shaft reversing point (up or down)
Calculating distances or symmetry
Dynamic measuring functions
Perpendicularity measurement
Straightness measurement
Measurement in 2D mode
Measuring programs
Measuring data processing

Measuring system

Optical incremental measuring system for outstanding measuring accuracy and reliability
Dynamic probe system enabling high repeatability
Air bearing system for light and smooth movement
Motorized measuring slide simplifies measurement runs
Probe constant remains after the instrument is switched off
Integrated rechargeable battery with a long operating life for mains-independent measurement
Temperature compensation via internal temperature sensor

Scope of delivery

Height measuring instrument incl. operating and display element
Carrier 817 h1
Measuring anvil K6/51
Setting gage 817 eb
USB cable
Operating instructions
Recharging unit
Protective cover
Calibration certificate
